Proteogenomics for pediatric brain cancer


University of Californian Los Angeles, David Geffen School of Medicine, Los Angeles, 90095, USA
*Address correspondence to: Margaret Simonian, Margaret@chem.ucla.edu
Received: 05 May 2021; Accepted: 11 June 2021

Abstract: Pediatric central nervous system tumors are the most common tumors in children, it constitute 15%–20% of all malignancies in children and are the leading cause of cancer related deaths in children. Proteogenomics is an emerging field of biological research that utilizes a combination of proteomics, genomics, and transcriptomics to aid in the discovery and identification of biomarkers for diagnosis and therapeutic purposes. Integrative proteogenomics analysis of pediatric tumors identified underlying biological processes and potential treatments as well as the functional effects of somatic mutations and copy number variation driving tumorigenesis.

Keywords: Proteogenomics; Brain cancer; Targeted therapy


Pediatric brain tumors are the leading cause of cancer related deaths in children. Pediatric brain tumors are masses of abnormal cells that occur in a child’s brain, some are benign and some are malignant. Paediatric brain tumors treatment is different than adult brain tumors treatment and it depends on the type, size, and the location of the tumor within the brain, as well as the child’s age and general health (Pollack et al., 2006). The four main pediatric brain tumors are medulloblastoma, ependymoma, high-grade glioma and low-grade glioma (Zhukova et al., 2019).

Current treatment options


Surgical removal is performed when the tumor is small in size and easily accessible for complete surgical removal. Although it carries risks especially when tumors cannot be separated from surrounding tissue or when they are located near sensitive areas in the brain (Pollack et al., 2006).

Radiation therapy (RT)

Such as X-rays or proton beam therapy that delivers high targeted doses of radiation to brain tumors, while minimizing radiation exposure to surrounding healthy tissues. RT has undergone comprehensive changes in recent decades to maximize the therapeutic benefit between efficacy and toxicity, such as the development of IMRT, VMAT and PBRT radiation therapy (de Nunzio and Yock, 2020).


Stereotactic radiosurgery delivers multiple highly focused beam of radiation Gamma Knife or linear accelerator treatment to destroy the tumor in a small area. The point where all the beams meet receives the highest dose of radiation while minimizing the radiation exposure to surrounding tissues. Radiosurgery in children is important for treating unresectable tumors or recurrent tumors that have received prior radiotherapy (de Nunzio and Yock, 2020).


Chemotherapy uses drugs to destroy cancer cells, normally injected through the vein (intravenous chemotherapy). The option of chemotherapy drugs depends on the type of cancer (Zhukova et al., 2019).

Targeted drug therapy

Targeted therapy uses drugs to target specific genes and proteins that are involved in the growth and survival of cancer cells, one example is bevacizumab that is used to treat low-grade gliomas (Zhukova et al., 2019) (Fig. 1). Genomic techniques started to elucidate the pathogenesis of many pediatric brain tumors, however, there are some challenges that limit the translation of these findings into therapy (Kumar et al., 2018; Chalmers et al., 2017; Grobner et al., 2018; Northcott et al., 2017). The majority of pediatric brain tumors resist genomic targeted treatments. In addition many pediatric brain tumors are characterized by deviant epigenetic landscapes, and there is no effective way to specifically target these changes (Capper et al., 2018).


Figure 1: Radiological response to bevacizumab therapy; MRI imaging at baseline PLGG (A) and PLGG10 (C) and 15 mo after completion of therapy PLGG8 (B) and after 6 mo of therapy PLGG10 (D) (Zhukova et al., 2019).


Recently quantitative mass spectrometry analyses have advanced, adding a quantitative proteomics approach to a primarily genomics based biological understanding of cancers; this gave rise to a new emerging technology called “Proteogenomics” (Dou et al., 2020; Simonian et al., 2017; Zhang et al., 2016). Proteogenomics utilizes a combination of proteomics, genomics, and transcriptomics to support the discovery and identification of novel peptides from mass spectrometry based data (Zhang et al., 2016). Hence, analysis of integrated proteogenomics datasets has the potential to aid with identification of new therapeutic targets and avenues.

Proteogenomics recently have been used in many cancer studies, such as breast, colon and liver cancers to better understand tumor biology and provide therapeutic targets (Krug et al., 2020; Vasaikar et al., 2019; Gao et al., 2019). In 2020, Petralia et al. (2020), conducted the first comprehensive proteogenomic study across major histological types of pediatric brain cancer. The analysis included whole-genome sequencing RNA sequencing (transcriptomics), proteomics (LC-MS, MRM, TMT) and phosphoproteomics characterization, of 218 tumors across 7 histological types of childhood brain cancer: low-grade glioma (LGG), high-grade glioma (HGG), ependymoma (EP), craniopharyngioma (CP) medulloblastoma (MB), ganglioglioma, and atypical teratoid rhabdoid tumor (ATRT). This was the first large-scale proteogenomics analysis across traditional histological boundaries to reveal foundational pediatric brain tumor biology and reveal rational treatment options (Petralia et al., 2020) Fig. 2.

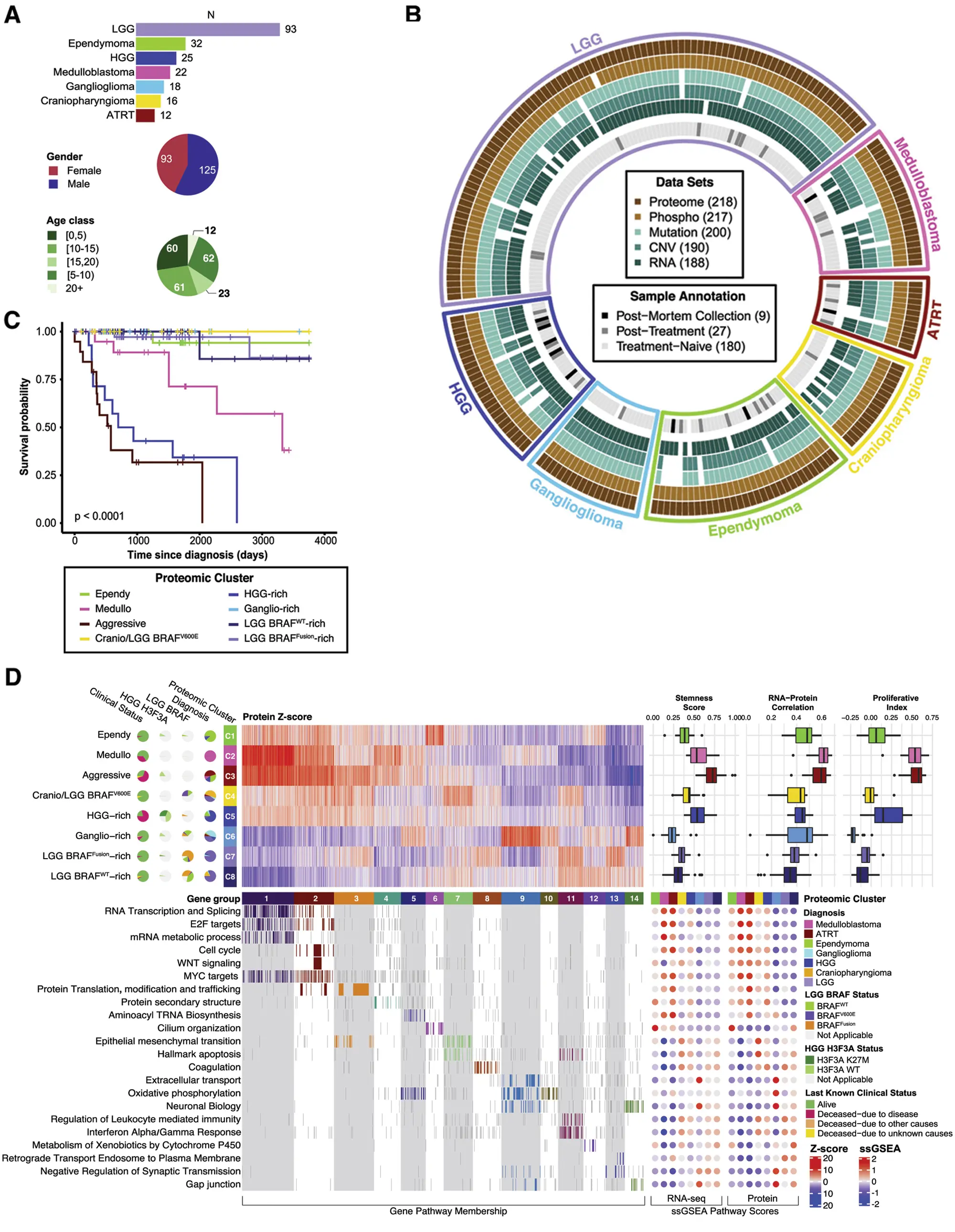

Figure 2: Proteomics clustering of pediatric brain tumors showing, summary of the brain tumor cohort, presence of omics datasets for each of the 218 tumor samples, Kaplan-Meier curves for overall survival (OS) of patients stratified by proteomic cluster, proteomic clusters and differentially expressed proteins allocated to 14 gene groups, heatmap of kinase activity scores for CP tumors and diagram showing differences between C4 and C8 CP tumors in terms of phosphorylation abundance and kinase activity for AKT and ERK1/2 signaling members. For full figure description see (Petralia et al., 2020

The Proteomics data identified familiar biological patterns across histological samples, suggesting that treatments used for one histological type may be applied effectively to other tumors with similar proteomics characteristics. The data further revealed functional effects of somatic mutations and copy number variations not visible in the transcriptomics data (Petralia et al., 2020).

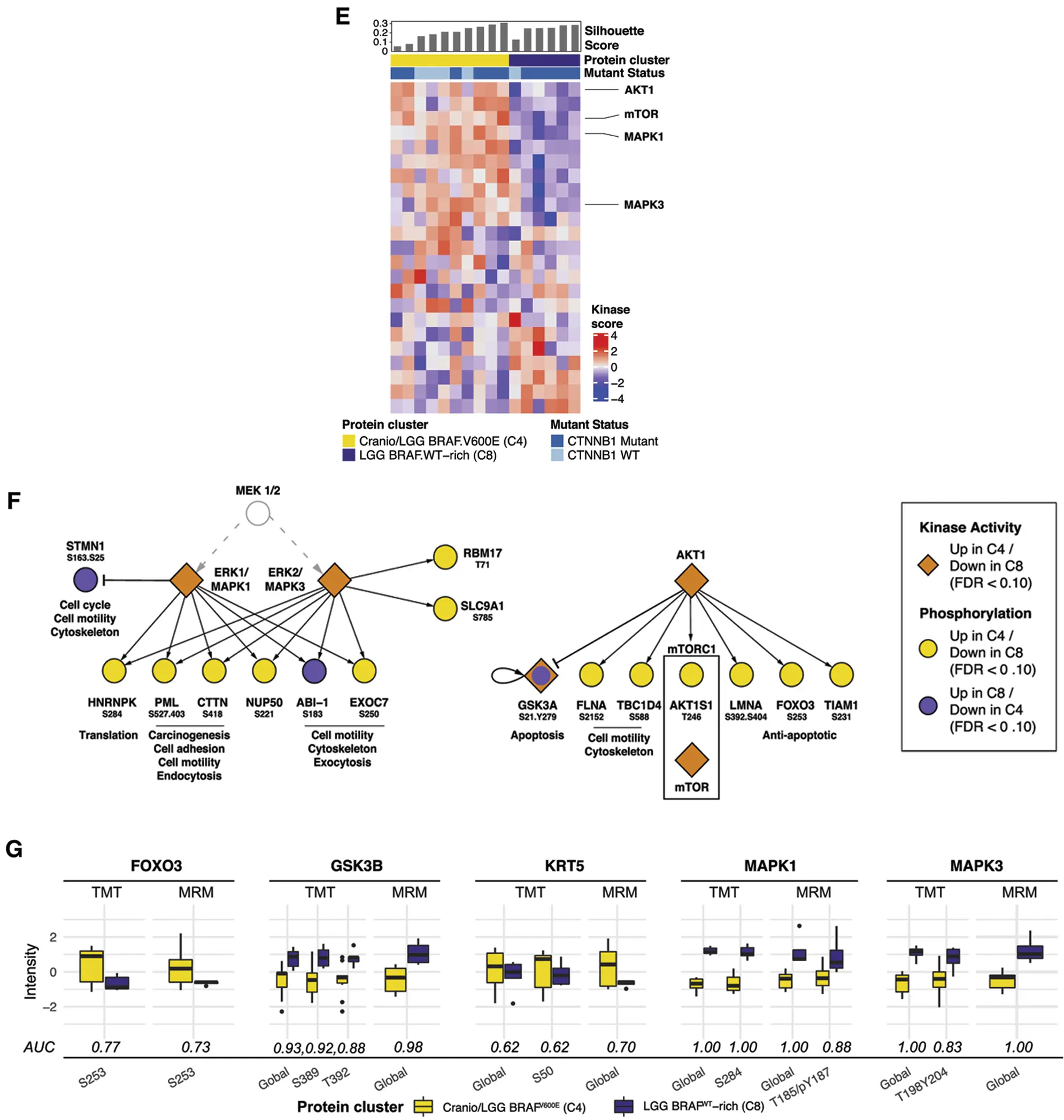

Kinase-substrate association and co-expression network analysis also identified important tumorigenesis mechanisms. Investigation of kinase activity based on phosphoproteomics showed that protein abundance can be reduced in active signaling pathways (e.g., ERK1/3 in CP), which could happen because of feedback loops in many complicated regulatory processes, suggesting the important role of phosphoproteomics data in characterizing pathway activities (Petralia et al., 2020).

The proteomics/phosphoproteomics data clustering analyses uncovered two apparent subgroups of pediatric CP, with one subgroup showing similar proteomics/phosphoproteomics characteristics as pediatric LGG BRAFV600E tumors. This observation suggests potential use of MEK/MAPK inhibitors in a subset of pediatric CP, which currently has no effective chemotherapy options. The existence of these two subgroups of CP, was not evident from RNA data. Additionally they observed a disagreement between RNA and protein abundance in other histologies, such as EP and LGG (Gao et al., 2019). The low to moderate RNA-protein correlation in the study was consistent with other large-scale proteogenomics projects studies (Dou et al., 2020; Clark et al., 2019; Gillette et al., 2020). Multiple factors, such as protein turnover and selective translation, may have contributed to the low correlation between RNA and protein abundance. Furthermore, more aggressive tumors showed increased protein-RNA correlation, this occurrence was observed among multiple cancer proteogenomics studies (Dou et al., 2020; Clark et al., 2019). One possible explanation is that aggressive tumors often have high proliferation, and the boosted translation activities in highly proliferative tumor cells result in more correlated RNA and protein signals. Hence, studying the proteome revealed insights that were not evident from RNA-based analysis alone (Petralia et al., 2020).

Pediatric tumors normally have fewer genetic variation and somatic mutations compared to adult tumors (Grobner et al., 2018; Sweet-Cordero and Biegel, 2019; Barkhoudarian et al., 2016). However few recurrent DNA alterations were observed in the above study. LGG tumors with BRAFV600E mutation had significantly downregulated BRAF protein abundance compared with BRAFWT LGG tumors where in fact the reduction was not significant at the transcript level. CTNNB1 mutation resulted in elevated protein/RNA levels among CP samples, whereas NF1 mutation resulted in down regulation of associated proteins and transcripts in HGG. SMARCB1 RNA/protein were also significantly downregulated in ATRT samples and the downregulation was the result of different types of DNA alterations, including mutation, deletion, and copy-neutral loss of heterozygosity (Petralia et al., 2020).


These studies demonstrated the ability of proteomics, phosphoproteomics, and kinase activity scores to elucidate active signaling processes within tumors types. Applying these capabilities in a clinical trial study could reveal valuable information regarding the biology of individual tumors that respond to a given therapy. Once signature proteomics targets are identified, MRM (multiple reaction monitoring) signatures can be developed to identify individuals in real time whose tumors display particular biologics hence, may respond to a treatment. Similar histological tumors are usually treated differently in pediatric and adult patients, although they often differ in their genomic features, this study has shown that they do not always drive biology. Future proteomics work is needed to cross examine tumors whose incidence compass a large age range to answer questions regarding how biology changes across the spectrum and if treatments can be rearranged for maximum benefit. A future study gathering larger group of the less common brain tumor types would also be instructive in identifying the biology that is unique to those tumors.

Authors’ Contributions: The author confirms sole responsibility for the following: study conception and design, data collection, analysis and interpretation of results, and manuscript preparation.

Funding Statement: This work was supported by funding from the National Institutes of Health, USA (NIH, P30 DK063491).

Conflicts of Interest: The author declares that there are no conflicts of interest to report regarding the present study.


  1. Barkhoudarian, G., Whitelegge, JP., Kelly, DF., & Simonian, M. (2016). Proteomics analysis of brain meningiomas in pursuit of novel biomarkers of the aggressive behavior. Journal of Proteomics & Bioinformatics, 9, 53-57. [Google Scholar]
  2. Capper, D., Jones, DTW., Sill, M., Hovestadt, V., & Schrimpf, D. (2018). DNA methyl-ation-based classification of central nervous system tumours. Nature, 555, 469-474. [Google Scholar]
  3. Chalmers, ZR., Connelly, CF., Fabrizio, D., Gay, L., & Ali, SM. (2017). Analysis of 100,000 human cancer genomes reveals the landscape of tumor mutational burden. Genome Medicine, 9, 34. [Google Scholar]
  4. Clark, DJ., Dhanasekaran, SM., Petralia, F., Pan, J., & Song, X. (2019). Clinical proteomic tumor analysis consortium 2019. Integrated proteogenomic characterization of clear cell renal cell carcinoma. Cell, 179, 964-983.e31. [Google Scholar]
  5. de Nunzio, N., & Yock, T. (2020). Modern radiotherapy for pediatric brain tumors. Cancers (Basel), 12, 1533. [Google Scholar]
  6. Dou, Y., Kawaler, EA., Cui Zhou, D., Gritsenko, MA., & Huang, C. (2020). Clinical prote-omic tumor analysis consortium 2020. Proteogenomic characterization of endometrial carcinoma. Cell, 180, 729-748.e26. [Google Scholar]
  7. Gao, Q., Zhu, H., Dong, L., Shi, W., & Chen, R. (2019). Integrated proteogenomic characterization of HBV-related hepatocellular carcinoma. Cell, 179, 561-577. [Google Scholar]
  8. Gillette, MA., Satpathy, S., Cao, S., Dhanasekaran, SM., & Vasaikar, SV. (2020). Clinical proteo-mic tumor analysis consortium 2020. Proteogenomic characterization reveals therapeutic vulnerabilities in lung adenocarcinoma. Cell, 182, 200-225.e35. [Google Scholar]
  9. Grobner, SN., Worst, BC., Weischenfeldt, J., Buchhalter, I., & Kleinheinz, K. (2018). ICGC PedBrain-Seq Project; ICGC MMML-Seq Project 2018. The landscape of genomic alterations across childhood cancers. Nature, 555, 321-327. [Google Scholar]
  10. Krug, K., Jaehnig, EJ., Satpathy, S., Blumenberg, L., & Karpova, A. (2020). Proteogenomic landscape of breast cancer tumorigenesis and targeted therapy. Cell, 183, 1436-1456. [Google Scholar]
  11. Kumar, R., Liu, AP., & Orr, BA. (2018). Advances in classification of pediatric brain tumors through DNA methylation profiling: From research tool to frontline diagnostic. Cancer, 124, 4168-4180. [Google Scholar]
  12. Northcott, PA., Buchhalter, I., Morrissy, AS., Hovestadt, V., & Weischenfeldt, J. (2017). The whole-genome landscape of medulloblastoma subtypes. Nature, 547, 311-317. [Google Scholar]
  13. Petralia, F., Tignor, N., & Reva, B. (2020). Integrated proteogenomic characterization across major histological types of pediatric brain cancer. Cell, 183, 1962-1985. [Google Scholar]
  14. Pollack, IF., Hamilton, RL., Sobol, RW., Burnham, J., Yates, AJ., & Holmes, EJ. (2006). O6-methylguanine-DNA methyltransferase expression strongly correlates with outcome in childhood malignant gliomas: Results from the CCG-945 cohort. Journal of Clinical Oncology, 24, 3431-3437. [Google Scholar]
  15. Simonian, M., Ogorzalek Loo, R., Rannulu, N., Loo, JA., Molloy, MP., & Stoodley, MA. (2017). Identification of protein targets in cerebral endothelial cells for brain arteriovenous malformation (AVM)s molecular therapies. Journal of Clinical Proteomics, 14, 1-12. [Google Scholar]
  16. Sweet-Cordero, A., & Biegel, JA. (2019). The genomic landscape of pediatric cancers: Implications for diagnosis and treatment. Science, 363, 1170-1175. [Google Scholar]
  17. Vasaikar, S., Huang, ., Wang, ., Vladislav, A., & Petyuk, . (2019). Proteogenomic analysis of human colon cancer reveals new therapeutic opportunities. Cell, 177, 1035-1049. [Google Scholar]
  18. Zhang, H., Liu, T., Zhang, Z., Payne, SH., & Zhang, B. (2016). CPTAC Investigators 2016. Inte-grated proteogenomic characterization of human high-grade serous ovarian cancer. Cell, 166, 755-765. [Google Scholar]
  19. Zhukova, N., Rajagopal, R., & Lam, A. (2019). Use of bevacizumab as a single agent or in adjunct with traditional chemotherapy regimens in children with unresectable or progressive low-grade glioma. Genome Medicine, 8, 40-50. [Google Scholar]
