Recent Progress of Fabrication, Characterization, and Applications of Anodic Aluminum Oxide (AAO) Membrane: A Review

Saher Manzoor1, Muhammad Waseem Ashraf1,*, Shahzadi Tayyaba2, Muhammad Imran Tariq3,*, M. Khalid Hossain4

1 Department of Physics (Electronics), GC University, Lahore, 54000, Pakistan
2 Department of Computer Engineering, The University of Lahore, Lahore, 54000, Pakistan
3 Department of Computer Science, Superior University, Lahore, 54000, Pakistan
4 Atomic Energy Research Establishment, Bangladesh Atomic Energy Commission, Dhaka, 1349, Bangladesh

* Corresponding Authors: Muhammad Waseem Ashraf. Email: email; Muhammad Imran Tariq. Email: email

Computer Modeling in Engineering & Sciences 2023, 135(2), 1007-1052. https://doi.org/10.32604/cmes.2022.022093

Abstract

The progress of membrane technology with the development of membranes with controlled parameters led to porous membranes. These membranes can be formed using different methods and have numerous applications in science and technology. Anodization of aluminum in this aspect is an electro-synthetic process that changes the surface of the metal through oxidation to deliver an anodic oxide layer. This process results in a self-coordinated, exceptional cluster of round and hollow formed pores with controllable pore widths, periodicity, and thickness. Categorization in barrier type and porous type films, and different methods for the preparation of membranes, have been discussed. After the initial introduction, the paper proceeds with a brief overview of anodizing process. That engages anodic aluminum oxide (AAO) layers to be used as formats in various nanotechnology applications without the necessity for expensive lithographical systems. This review article surveys the current status of the investigation on AAO membranes. A comprehensive analysis is performed on AAO membranes in applications; filtration, sensors, drug delivery, template-assisted growth of various nanostructures. Their multiple usages in nanotechnology have also been discussed to gather nanomaterials and devices or unite them into specific applications, such as nano-electronic gadgets, channel layers, and clinical platforms tissue designing. From this review, the fact that the specified enhancement of properties of AAO can be done by varying geometric parameters of AAO has been highlighted. No review paper focused on a detailed discussion of multiple applications of AAO with prospects and challenges. Also, it is a challenge for the research community to compare results reported in the literature. This paper provides tables for easy comparison of reported applications with membrane parameters. This review paper represents the formation, properties, applications with objective consideration of the prospects and challenges of AAO applications. The prospects may appeal to researchers to promote the development of unique membranes with functionalization and controlled geometric parameters and check the feasibility of the AAO membranes in nanotechnology and devices.

Graphical Abstract

Recent Progress of Fabrication, Characterization, and Applications of Anodic Aluminum Oxide (AAO) Membrane: A Review

Keywords


List of abbreviations

AAO Anodized Aluminum oxide
EPR Electron paramagnetic reverberation
PB Pilling Bedworth
SSAW Standing surface acoustic waves
PDMS Polydimethylsiloxane
AT-AAO Al textured AAO
GZO Ga-doped ZnO
WG Wrinkled graphene
SERS Surface enhanced Raman scattering
SMSA Simultaneous multi-surfaces anodization
FPI Fabry-Perot interferometer
GNW Gold nanowire
TENG Triboelectric nanogenerator
P3HT Poly 3-hexylthiophene
ECR-CVD Electron cyclotron resonance chemical vapor deposition
PPy/DBS Polypyrrole doped with the dodecylbenzenesulfonate
FITC-BSA Fluorescein isothiocyanate labelled Bovine serum albumin
PGMA Propylene glycol monoacetate
DOX Doxorubicin
PBS Phosphate buffered solution
PDMS Polydimethylsiloxane
VACNTs Vertically aligned carbon nanotube
IAAA Indole-3-acetic acid
LCD Liquid crystal display
PAN/GO Polyacrylonitrile/graphene oxide
ZIF-8 Zeolite imidazolate framework 8

1  Introduction

Since the beginning of the 1940s, membrane technology has advanced as a subdiscipline of physical chemistry and engineering. The development of this technology reached a milestone in the late 40s with the development of microporous membranes. Other landmarks that marched the development of this technology include permionic membranes, asymmetric membranes for reverse osmosis and ultrafiltration, and gas-permeation membranes. Overall, the dyad of research direction and activities for the development of membrane technology can be categorized into two critical stages. The first stage was till the 1980s. Scientists made contributions to the early development of membrane formation using suitable materials. After the 1980s, the second stage is based on membrane formation methods with controlled conditions for improved membrane characteristics [15]. Several classification schemes have been reported for membranes due to various material, geometry, and fabrication techniques [6].

Membranes depending upon the features like nature, geometry, and transport mechanism, have numerous medical, and industrial applications like drug delivery [7,8], tissue engineering, dialysis, cold sterilization for pharmaceuticals, water purification, and industrial gas separation [9,10]. Membrane processes have also been proved more valuable than traditional technologies. The reason for the wide range of applications is that the pressure-driven membrane processes provide size-based separation for a wide range from micro to nano [11].

The development process of the nanostructured membrane comprises several challenges and requires the mutual efforts of material scientists and analytical chemists. As for the growth of membrane design and technology, understanding nanostructures, functionalization of nanomaterials, and chemical incorporation play a vital role [10]. Regarding the material of the membrane, the researchers performed an extensive investigation on organic membranes in the beginning. But after some time, inorganic membranes gathered their attention. As inorganic membranes show high resistance to temperature and pressure, have a longer life span, and are insensitive to bacterial attack [12,13].

Aluminum was preferred over other materials in many applications due to its outstanding properties. However, most of the applications require well-defined surface properties that fluctuate by different surface treatments. This paper aims to review the aluminum oxide membrane [1417], its properties, formation process with controllable geometric features, and detailed applications. Various applications of AAO membranes are discussed in detail with the help of available literature, and with each application, promising prospects are given. Finally, the paper concludes with future directions for the development and applications of AAO membranes in various fields. This study may open new paths for investigations in AAO applications.

2  Overview of AAO Membranes

In the beginning, when anodized aluminum was used in industrial applications, the main focus of the surface finishing industry was to develop a cost-effective anodization process with improved properties of the resulting products. So, the typical approach to getting porous AAO membrane used then did not result in an ordered structure free of cracks. Therefore, that process could not be used for applications in nanotechnology. Hence, attempts were made to develop an Anodization process so that the geometric factors can be engineered. This section provides an overview of anodization processes, characterization and properties of AAO membrane.

2.1 Anodization Process

Aluminum cannot exist in a natural environment in its basic form, and a 1–3 nm thick oxide layer is formed that protects the metal from further reaction with oxygen. Buff [18] in 1857 introduced an electrolytic oxidization process that forms a relatively thick layer than the natural. That enables the use of metal at the industrial level to apply to biomedical degradable devices and sensors [19,20]. In the 1920s, this observed phenomenon of oxidization was exploited for industrial applications [21]. In the 1960s, exposure tests were carried out on AAO in severe atmospheric conditions. The process is called anodization, as the electrolytic bath has aluminum as an anode. In the electrolysis process, the Al is soaked into an acid electrolyte bath. Electric current is passed through the bath in the presence of a cathode, as shown in Fig. 1. The whole reaction can be expressed using the following equation (Eq. (1)):

2Al+3H2SO4Al2(SO4)3+3H2(1)

images

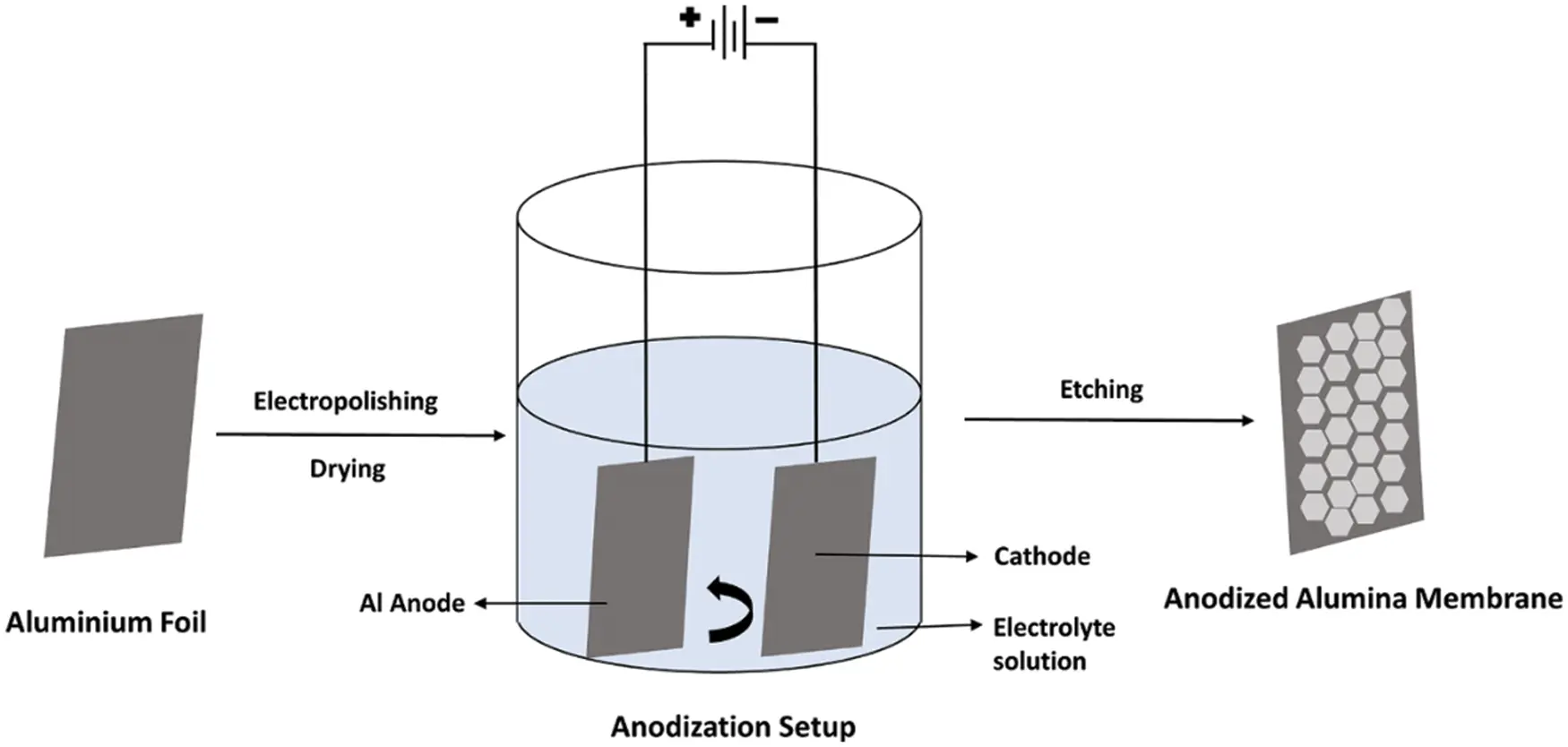

Figure 1: Schematic of the anodization process

Anodization of metals and semiconductors like Al, Ta, Nb, Mg, W, Hf, Zr, Si, Hf, and InP has been reported to form nanoporous structures. The oxidization process produces two types of films depending upon electrolyte and anodizing conditions. These films are known as porous type and barrier type. In the barrier type, the AAO membrane oxide layer is formed at the top of the Al substrate. The thickness of these films increases with the current density applied; however, anodizing time does not affect the thickness between the outer and inner layers. Minimum loss of ions occurs in the electrolyte from the film while forming barrier-type films. Addition of oxygen and loss of electrons or hydrogen ions. The formation of porous type AAO is a complex process. Porous thick films are formed when the anodic film is chemically reactive to the electrolyte like phosphoric, sulphuric, or oxalic acid. These films have a barrier layer in contact with the metal and a thick porous layer above it. The thickness of the porous layer is directly proportional to the amount of anodizing time [18,20,22]. The schematic for barrier and porous type AAO is shown in Fig. 2 and the properties of barrier and porous oxide films are given in Table 1 [2327].

images

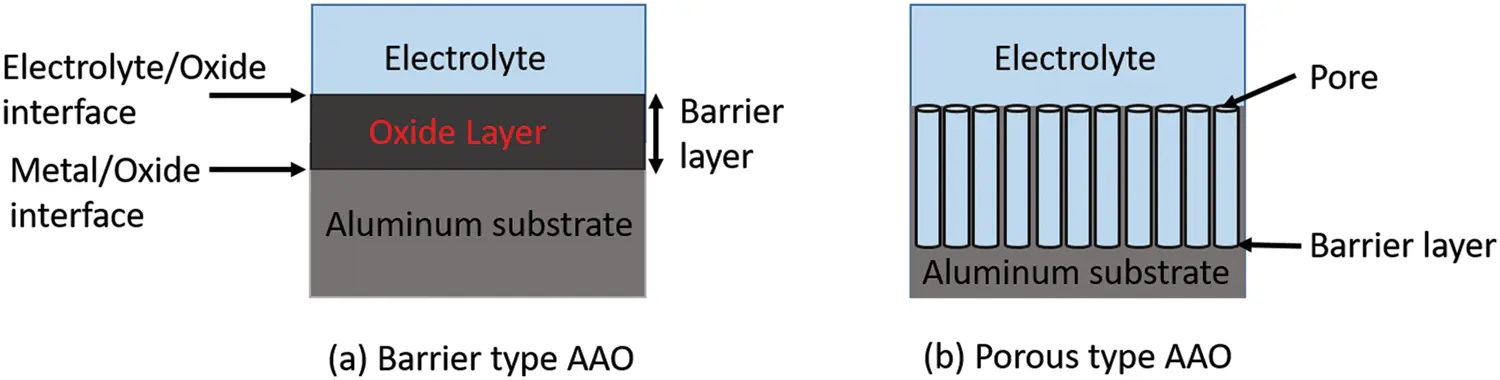

Figure 2: Schematic representation of barrier type and porous type AAO

images

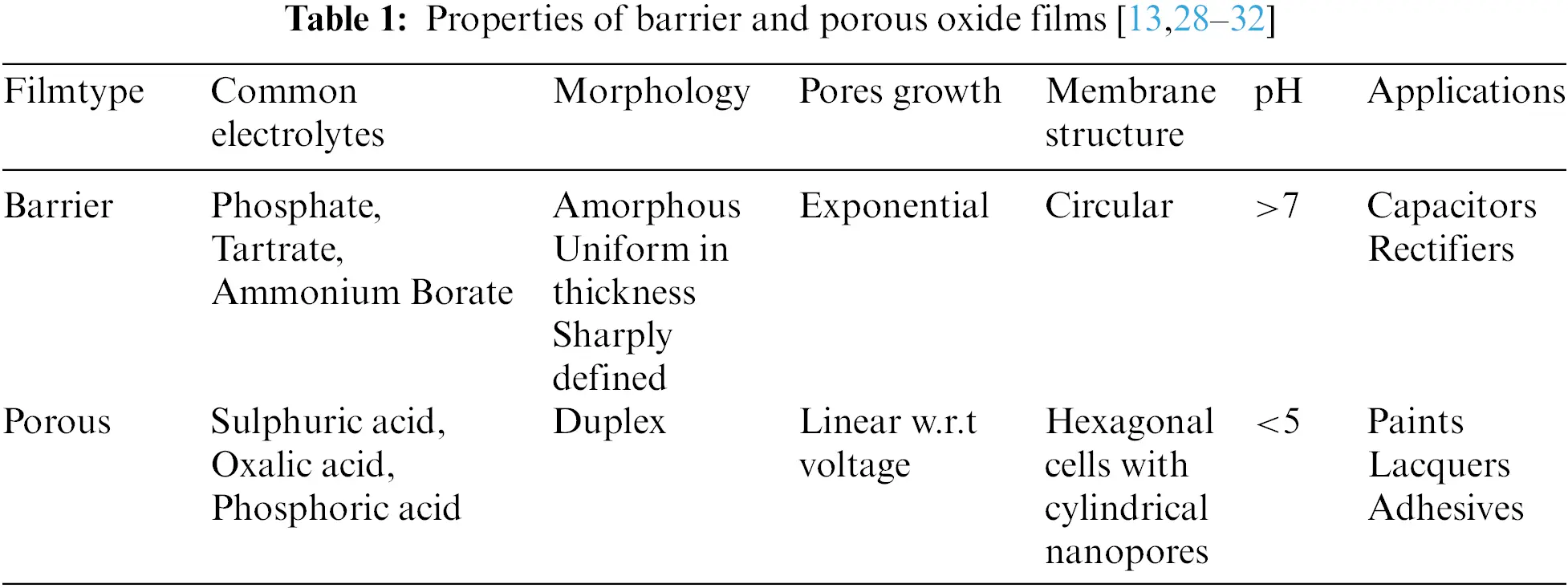

Both types of layer structures have applications in industry. Barrier type helps make capacitors because of its thin, resistant yet hard layer that behaves as an insulator. On the contrary, porous films are thick and have a highly controllable density distribution, pore diameter, cylindrical shape, and periodicity. Because of their high aspect ratio and porous structure, these templates are widely used in nanotechnology [2327].

Pore development behavior under various precise conditions has been studied to plan an interesting permeable stage for explicit applications significantly. All the different types of anodization used to get porous AAO structure are explained briefly.

(a) Hard anodization: The typical hard anodization process adopted by the industries in the early 1920 was carried out at a potential more incredible than the breakdown value resulting in cracks in the resulting anodic structure with poor mechanical stability. Various attempts were made to overcome the problem associated with the process. The modified hard anodization process is carried out at a high voltage, but the voltage value is below the dissolution of the metal. The primary benefit of this type of anodization is that we can get a high-quality nanoporous oxide structure with a fast growth rate [33,34]. A perfectly ordered AAO membrane with a high aspect ratio with an increased oxide growth rate by 70 mm/h was obtained by a hard anodization process [35].

(b) Mild anodization: Mild anodization is carried out at relatively low voltage, and thus the oxide growth is slow. In 1996, Masuda et al. developed a two-step anodization process in which the anodization is carried out in two steps. Two-step anodization combines mild and hard anodization steps with varied voltage or time in each step. In between these steps, etching is done to remove the distorted portion. The conditions during both steps for anodization are the same except for each step’s time interval. The development of this method led to several other studies by researchers for a better understanding of parameters and their dependence on the anodization conditions [36,37].

(c) Pulse anodization: In the pulsed anodization process, low and high potentials are applied in pulses for both hard and mild anodization conditions. Many researchers were combining both hard and mild anodization processes to achieve desired membrane properties. In 1987, Tu et al. [38] reported pulsed AC and DC anodization; however, the results showed that the structure had satisfactory corrosion resistance with cracks and high surface roughness. Lee et al. [39] also used pulses of hard anodization voltage and mild anodization voltage in the presence of sulphuric acid as an electrolyte at room temperature to achieve AAO membrane.

(d) Cyclic anodization: Potentiostatic or galvanostatic periodic oscillatory signal is applied in this type of anodization process. A slow change of voltage/current between the mild and hard anodization modes is applied using the periodic signal, resulting in the porous structure. Losic et al. [40,41] applied this type of anodization process for the formation of AAO membrane. Although the concept of cyclic anodization is not new, it has also been used previously for the anodization of sputter-deposited alloys. The parameters chosen for the cyclic anodization result in the variation of the morphology of the anodized membrane. The variation of potential during pulse and cyclic anodization is shown in Fig. 3.

images

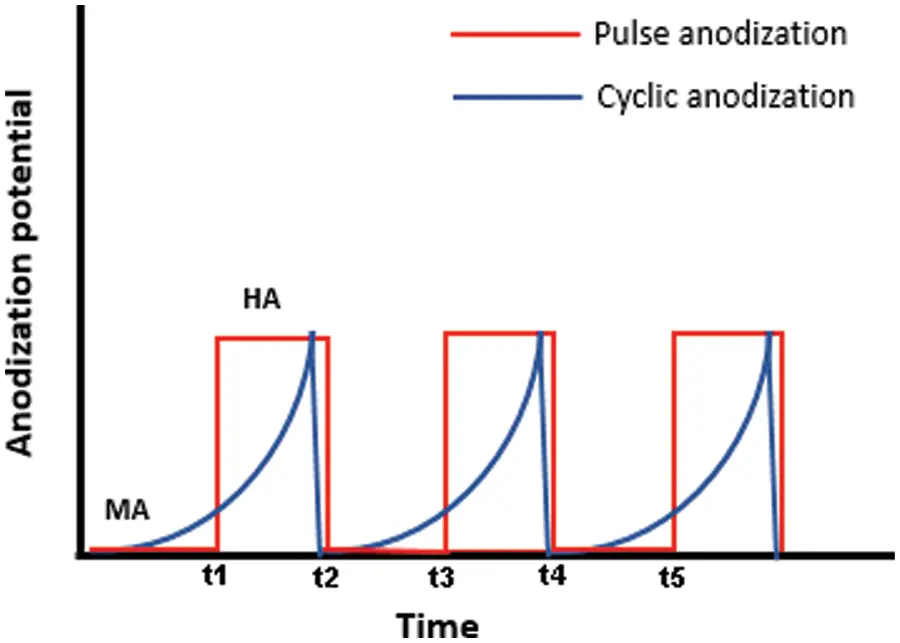

Figure 3: Variation of anodization potential with time in pulse and cycle anodization

When voltage is applied, the pore initiation occurs and with increase of voltage more pores initiate on the substrate and the pore diameter increases resulting in pear drop shape at high voltage. Metal dissolution varies for different voltage types pore growth during different types of anodization process in given in Fig. 4. In hard anodization high voltage is applied so the pores are comparatively thin from the top where as in mild anodization the upper portion of pores is quite wide. In cyclic and pulse anodization MA and HA process are applied alternatively so the pore length varies accordingly.

images

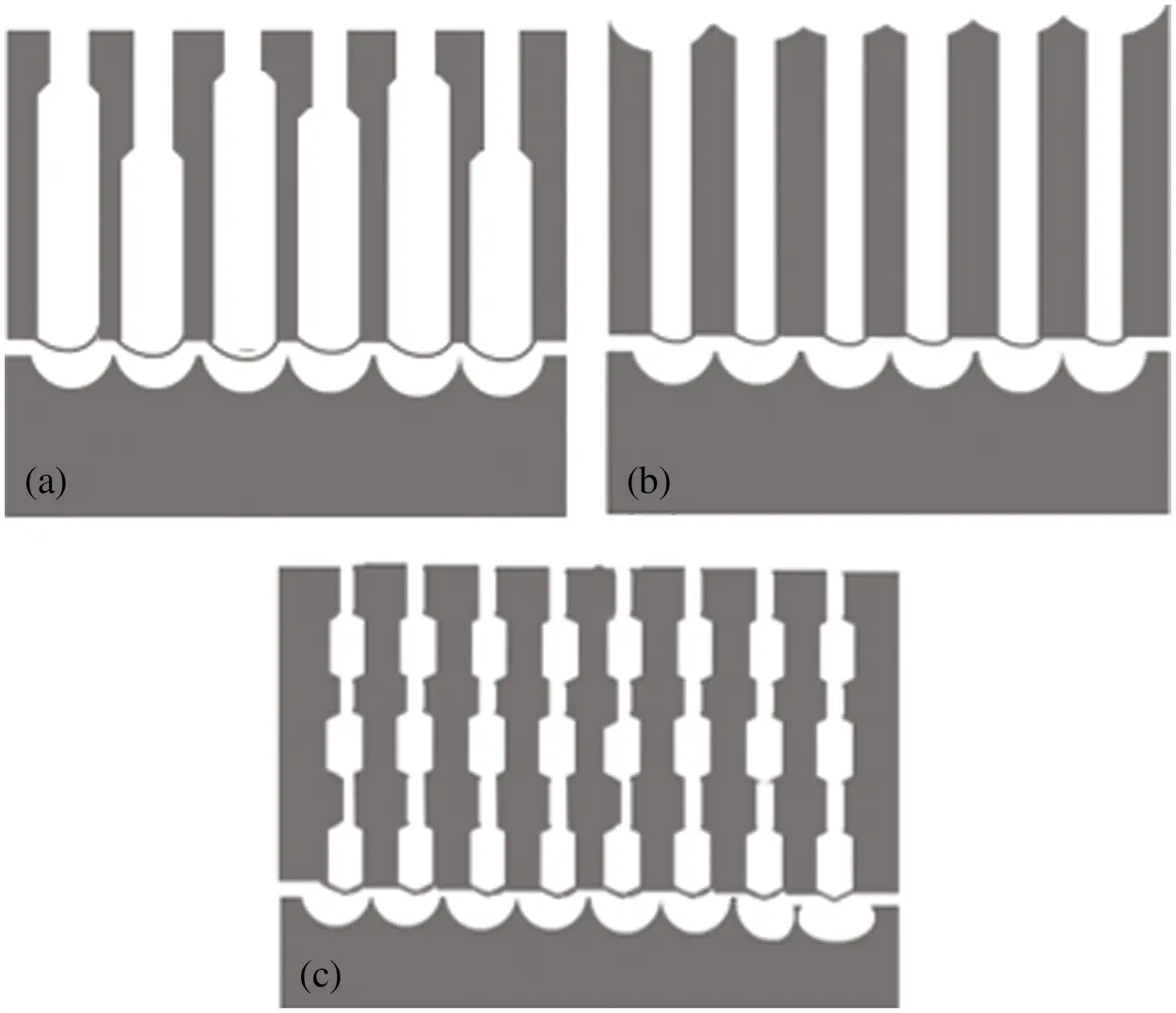

Figure 4: Pore growth (a) Hard anodization, (b) Mild anodization, (c) Pulse/cyclic anodization

2.2 Characterization of AAO

The anodization process results in a nanostructure that consists of a periodically arranged hexagonal pore channel. Nucleation of pores occurs on the substrate and grows in the vertical direction maintaining their direction coherent. The geometric feature of the prepared structure strongly depends on the experimental conditions. Distinct quantities for the characterization of the AAO membrane are pore diameter, pore density, porosity, pore length, and interpore distance. Fig. 5 shows the horizontal view of the AAO membrane with hexagonal cells with pores in their centers, and each hexagonal cell is separated by a cell boundary. Fig. 6 represents the 3D dimensional view of the AAO membrane with well-defined oxidized hexagonal cells on an Aluminum substrate.

images

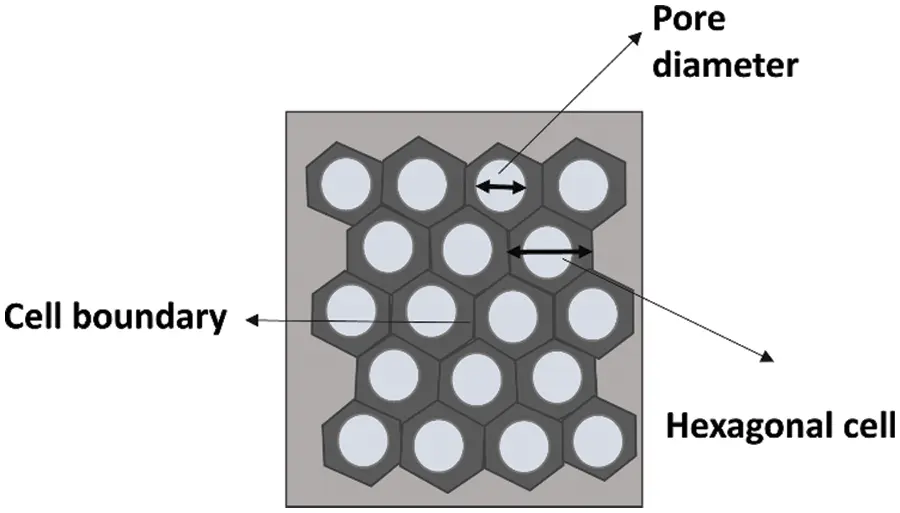

Figure 5: Horizontal view of ideal AAO membrane

images

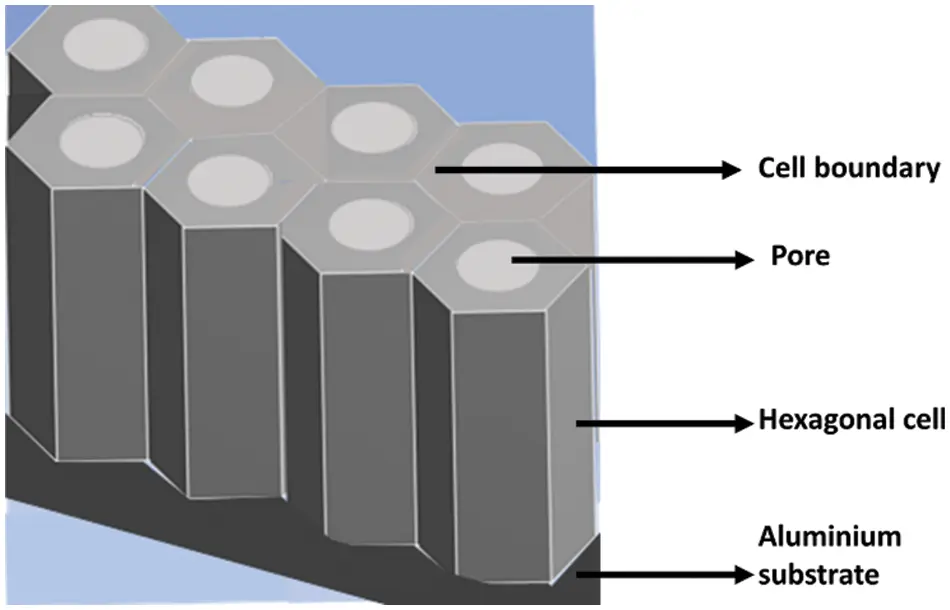

Figure 6: 3-dimensional view of AAO

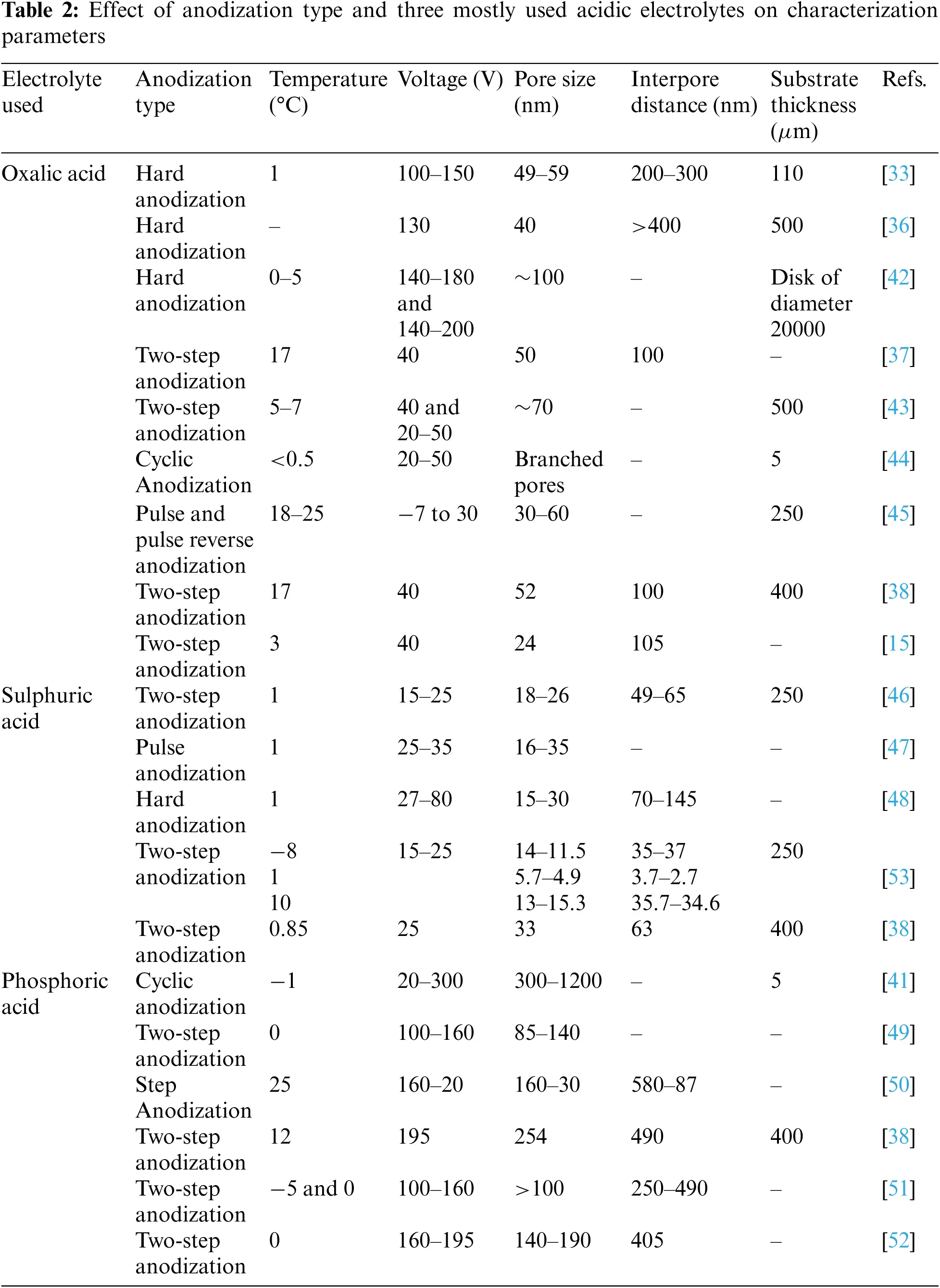

The parameters of the membrane depend on the anodization conditions. The most critical parameters for the characterization of the anodized membrane, i.e., pore diameter, interpore density, porosity, and pore density. Fig. 7 represents the bargraph for obtained pores size for different anodization conditions reported in literature. Table 2 shows the AAO membrane fabricated using different anodization types and the resulting parameters of the membrane [15,33,3638,4153].

images

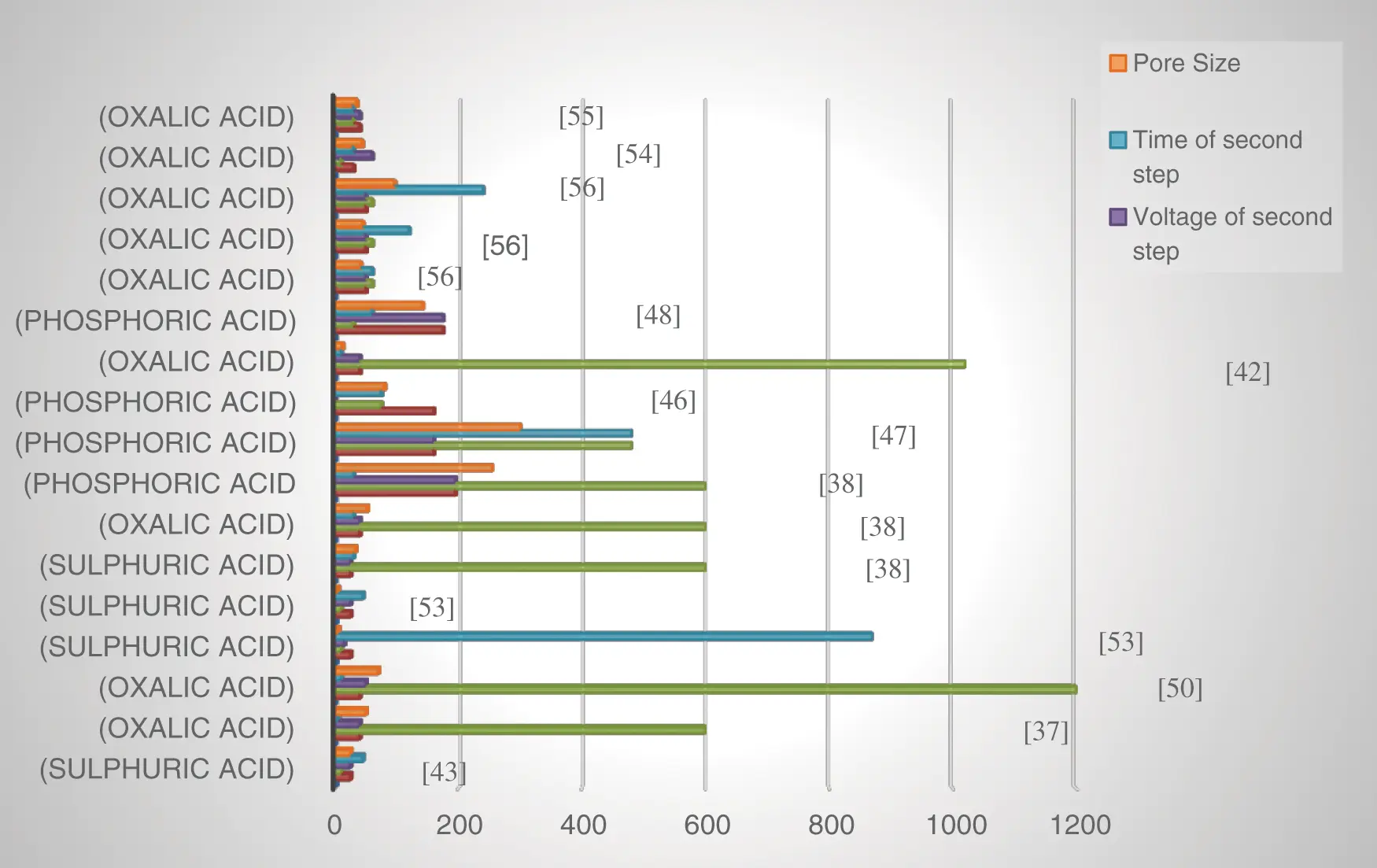

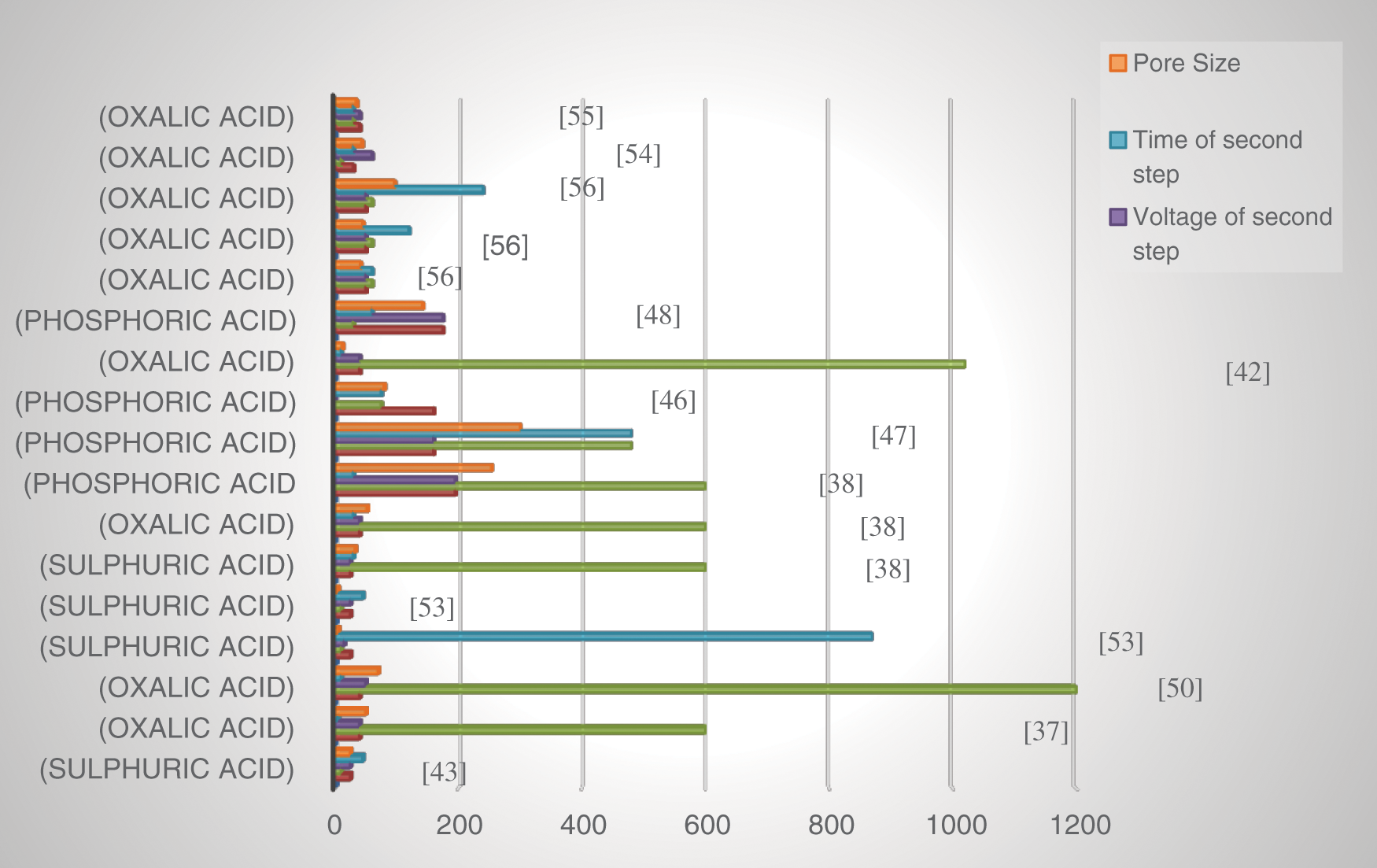

Figure 7: Effect of two step anodization parameters on pore size of the membrane [37,38,42,43,4648,50,5356]

images

2.3 Properties of AAO Membranes

These membranes are highly flexible nanomaterials that consolidate the artificially steady and precisely vigorous properties of ceramics with a homogeneous nanoscale association that can be tuned in terms of pore distance and lengths. The AAO membranes have a high surface area that can accommodate atoms of diverse sizes. AAO membranes exhibit extraordinary properties with tunability which make them suitable for countless applications. The properties responsible for great attention received by AAO membranes to get the maximum benefit from AAO membranes are discussed below.

(a) Electrostatic properties: Electrostatic properties of the inward pore surface just as the neighborhood causticity inside the nanochannels can be tuned. Due to the amorphous nature of the alumina layer, the nanochannel surface of AAO membranes prepared by anodization shows a positive charge. The anodization conditions greatly influence the surface electrostatic properties of the AAO membrane, and the acidity of the aqueous medium inside the pore channels depends on the pore diameter. Tunability of surface charge and associated electrostatic potentials make the membrane beneficial for specific applications that rely on acid-base equilibrium [57].

(b) Wettability: The wettability of any droplet deposited on a solid surface depends on the energy difference of both liquid and the surface. In the case of the AAO membrane, energy difference governs whether the liquid will enter the nanopores or not. The diameter of the nanopore if increases, then ultimately, the contact angle of the water with the surface increases [58]. Electrochemical anodization of the aluminum substrate can result in superhydrophobic AAO membranes if modified with fluorinated silane solution. The hydrophobic membrane shows long-term stability and can be used in anti-corrosion membrane applications. The contact angle of ~165 and sliding angle <2 have been reported for membranes modified by fluorinated saline [59]. Also, hydrophilic AAO nanoporous membranes can be prepared using the anodization method. By varying the anodization and the post-processing conditions, AAO membranes with different wettability and contact angles for water can be prepared depending on the application for which it is to be used [60,61].

(c) Mechanical properties: The nanoindentation method is used to investigate the mechanical properties like surface hardness, scratch hardness, and surface roughness of the AAO membrane. The hardness of the membrane depends on the pore diameter; as the pore diameter increases, the hardness decreases. Heat treatment after membrane formation influences the mechanical properties of the membrane, hardness increases as a result of heat treatment. Also, the wettability of the membrane depends on the surface roughness, and smooth surfaces produce low surface energy [62,63]. Relatively thin AAO membranes with increased mechanical strength have also been reported by using Si support. Which results in better performance of membranes in biomedical applications [64].

(d) Biocompatibility: AAO nanopores display excellent biocompatibility towards cells of the four basic tissue types (neuronal, epithelial, muscle, and connective tissue) as well as with platelets and different microorganisms. AAO interfacial examinations, a tremendous scope of biomedical applications have arisen. Nonporous AAO membranes have just been joined into coculture substrates for tissue designing, alumina biosensors, what’s more, bone embed coatings or nanoporous bio capsules for drug conveyance. Some portion of these applications has likewise been concentrated in vivo in brief timeframe tests yielding promising results concerning biocompatibility, drug discharge properties, what’s more, mechanical security of the nanoporous AAO films [65]. Biocompatibility of AAO films with a mean pore measurement of 100 nm was studied. A natural assessment of the layers was finalized to decide cell grip and morphology utilizing the Cercopithecus aethiops kidney epithelial cell line. Examination’s positive results show that AAO films can be utilized as a feasible tissue platform for potential tissue designing applications later on [66].

3  AAO Membrane Applications

AAO is an electro-synthetic process that changes the surface of the metal through oxidation to deliver an anodic oxide layer. During this process, a self-coordinated, exceptionally demanded cluster of round and hollow formed pores can be made with controllable pore widths, periodicity, and thickness. These properties engage AAO layers to be used as formats in various nanotechnology applications without the necessity for expensive lithographical systems. The current status of the investigation on AAO for various nanotechnology application make them beneficial in the assembly of nanomaterials and devices or unite them into unequivocal applications [25,67]. In this paper most prominent applications of AAO membranes in biomedicine; sensing, separation, drug delivery and nanostructures formation have been discussed. Properties of AAO membranes with various reported applications in different fields of interest are given.

3.1 AAO Membrane for Template-Assisted Growth of Nanostructures

3.1.1 Applications of AAO Membrane for Template-Assisted Growth of Nanostructures

Template-assisted growth represents a straightforward method in which the template acts as a structural framework. The nanostructures of the desired material can be formed within the template from precursors in situ, with shape and size defined by the pore size of the template. Generally, templates are of two types; soft templates and hard templates. Naturally occurring micelles are referred to as soft templates, whereas templates related to materials like AAO membranes are considered hard templates [68]. Due to size, the influence of diminishment nanostructures has a higher active part and increased surface to volume ratio, in addition, low-cost synthesis, monodispersed, and controllable diameter of AAO nanoporous membranes makes them suitable for the template-assisted growth of different nanostructures. Nanostructures ranging from nanotubes, nanowires, nanorods, nano dots arrays, interconnected 3D nano networks with highly controllable size and shape of a certain material can be grown using such membranes [69,70] Successive deposition of specified material into the nanosized pores of the AAO membrane results in nanostructures embedded in the membrane. However, free nanostructures can also be obtained by removing the membrane acting as a template [71,72].

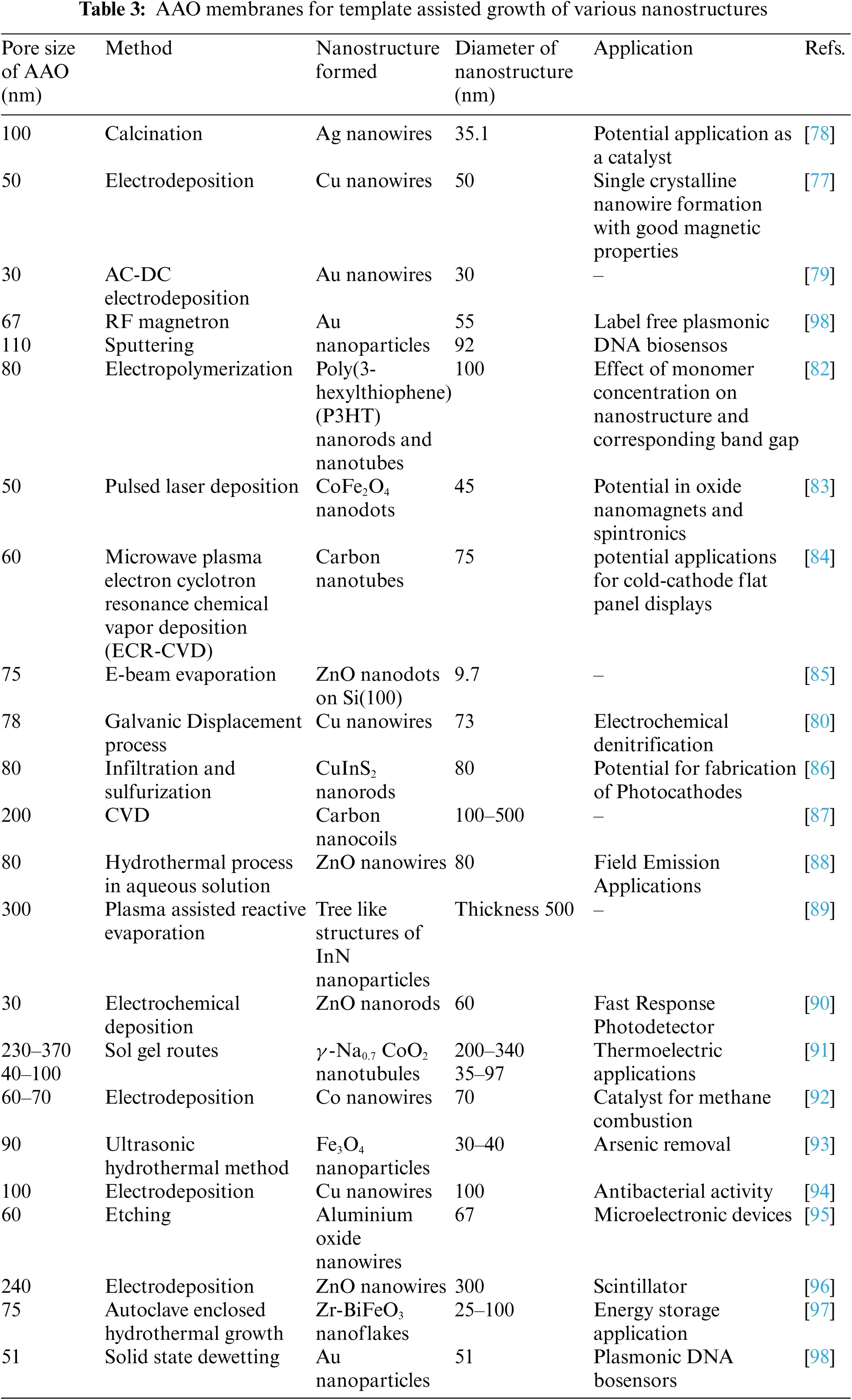

AAO template-based fabrication of nanowires arrays of pure metals like Pb [73], Sb [74], Ni [75,76], Zn [76], Ag [76] has been reported using electrodeposition. Thongmee et al. [77] also used electrodeposition to fabricate metallic nanowires of Ni, Co, Cu, and Fe. Yang et al. [78] reported low ion concentration and heating rate are beneficial for the AAO template-based fabrication of Ag nanowires using calcination. For the first time, Wu et al. [79] used AC-DC electrodeposition for the deposition of Au nanowires into an AAO template. Besides, the galvanic displacement method has been employed by Ganapathi et al. [80] to synthesize Cu nanowires into AAO. Electrodeposition method has also been employed for the fabrication of Ag dendrites to be used as 3D Surface Enhanced Raman Spectroscopy (SERS) active substrates for the detection of trace organic pollutants [81]. Fig. 8 depicts step-wise fabrication of Au nanoparticles on AAO template. Due to the uniform geometry of the AAO membrane, precisely controlled particle size can be obtained that is required for fine-tuning of plasmonic absorption peak. The Au nanoparticles transferred to epoxy support are completely stable in a fluidic environment. The presented mushrooms arrangement of AuNps on epoxy pillars with reproducible sensitivity successfully demonstrated label-free DNA detection. Other nanostructures of different materials reported in literature formed using AAO template along with their applications are given in Table 3 [7780,8298].

images

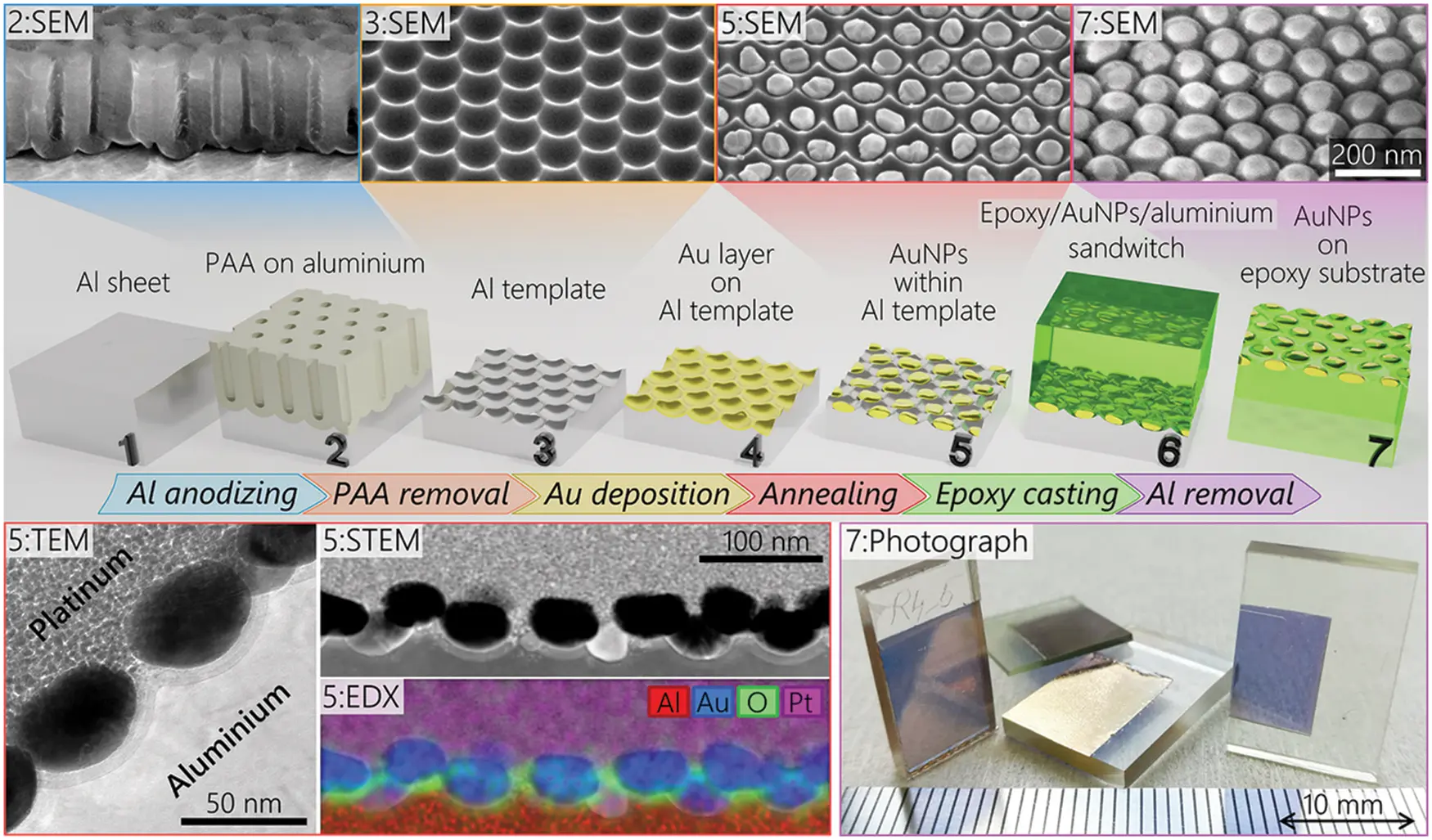

Figure 8: AAO based fabrication of AuNps on epoxy substrate for label-Free Plasmonic DNA Biosensors. Step wise schematic illustration of fabrication process (top), SEM figures of membrane at different steps (center), TEM STEM and EDS of AuNps within Al template (bottom left), photograph of sample after 7 steps (bottom right). Reproduced from [98]. Copyright 2020 American Chemical Society

images

3.1.2 Prospects of AAO Membrane for Template-Assisted Growth of Nanostructures

AAO membranes have excellent prospects as a template for the growth of large-scale nanostructure arrays for practical applications. The template-assisted growth of nanostructure is a widely accepted theoretical concept, but studies are required for the subset of materials to develop various structures. Optimization of template synthesis is crucial for the growth of multidimensional structures on a large scale. The control over crystallinity, diameter, and functionalization of nanostructures fabricated using AAO templates may open new paths for the expansion of their applications in various fields.

3.2 AAO Membrane for Filtration

3.2.1 Applications of AAO Membrane for Filtration

Pressure driven membrane filtration process depends upon the pore diameter of the membrane and is divided into four types. The factor for good selectivity is that the membrane must have narrow pore distribution. The thickness of the membrane should be between 1 to 10 µm for high flux. The size-based separation using membrane is used in many industrial and medical applications. The membranes with a mean pore diameter of 1 µm are used in the filtration process called microfiltration. Ultrafiltration is performed using a membrane with a mean pore diameter of 100 nm. For nanofiltration, the membrane should have a pore diameter of 10 nm, and the membranes with 1 nm mean pores are used in the process called reverse osmosis.

Biofiltration can be categorized into two main mechanisms based on the size and chemical affiliation of filtration membranes. Size limitation results in the blockage of molecules whose size is greater than the membrane’s pores. Chemical affiliation is related to the filtration mechanism as in the bonding of molecules with the filter membrane, and the selected molecules can be separated based on lower or higher chemical affinity with the membranes. If these factors can be controlled, then the filtration process can be optimized easily [99102]. The simplest membrane filtration system comprises a filtration membrane set up in the system, fluid to be filtered is poured onto the membrane, and the filtrate is obtained.

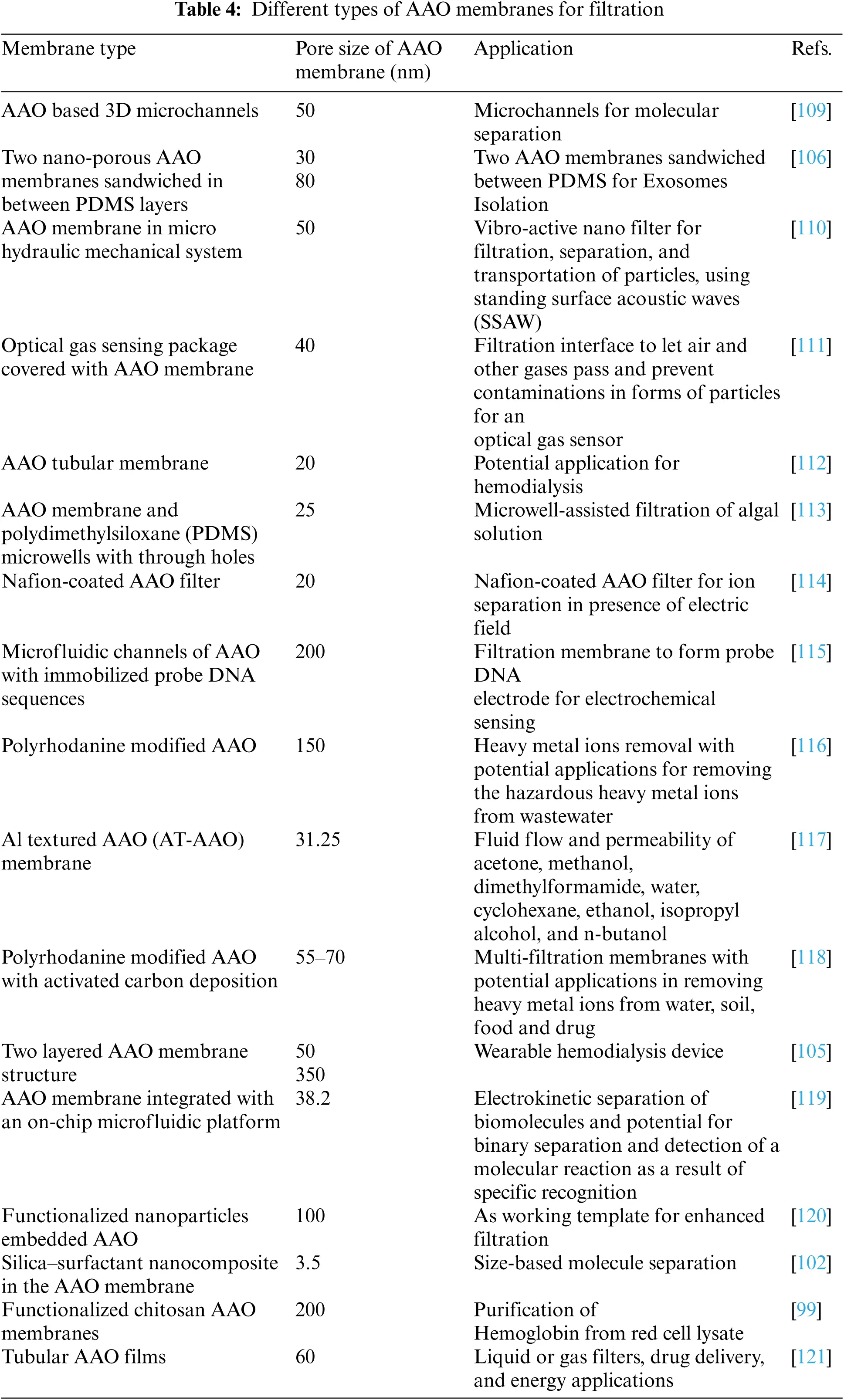

The separation of desired molecules has applications in the biomedical field. Important factors for filtration application of AAO membrane include flux rate, selectivity, high chemical, and mechanical stability with uniform pore size. The porosity of the sheet and membrane thickness is used to determine the flow rate and produce a mechanically stable AAO membrane for biomedical applications. Theoretical studies have been done for testing the mechanical stability of AAO membranes for filtration application. The studies show that the membrane can bear pressure up to 0.79 MPa and is suitable for microdialysis [103]. An adaptive ultrafiltration layer has been designed using an AAO template in polyprotic to provide filtration properties and used for desoxyribonucleic acid analysis [104]. Two-layered AAO has also been reported to speed up the hemodialysis and hemofiltration process [105]. Two-layered AAO membrane structures have been used for effective dialysis and to sieve exosomes, potential biomarkers for the early detection of cancerous cells [106]. Functionalized AAO membranes for purification of contaminated water and enantioselective separation have also been reported in the literature [107,108]. Figs. 9 and 10 represent the mechanism of filtration using functionalized AAO membranes for filtration and separation respectively. Fig. 9 represents a three-layered composite membrane for efficient water purification. AAO membrane with the middle layer of AuNps and the top layer of TiO2 Nps shows the photocatalytic function and photothermal driven evaporation. TiO2Nps exhibit photocatalytic function, and Au Nps enables plasmonic evaporation using solar energy. The plasmonic Au film heats up due to solar irradiation resulting in a hot zone at the interface of water and air. The heating up of the interface results in efficient water evaporation. The bifunctional integration results in an expanded useful solar light range for generating pure water in one step [107]. Two optically active homochiral polyfluorenes coated on AAO membranes are shown in Fig. 10. The cylindrical channels of AAO membranes help confine the polymers, which increases the available chiral surface, resulting in increased enantioselective separation of the amino acid mixture. One enantiomer was absorbed within the chiral pores, and the other enantiomer was left in the filtrate. This study revealed that the modulation of polymer-coated membrane and pore size can effectively enhance the separation process [108]. Various other applications of AAO membranes for filtration purposes have been reported in the literature and are also given in Table 4 [99,102,105,106,109121].

images

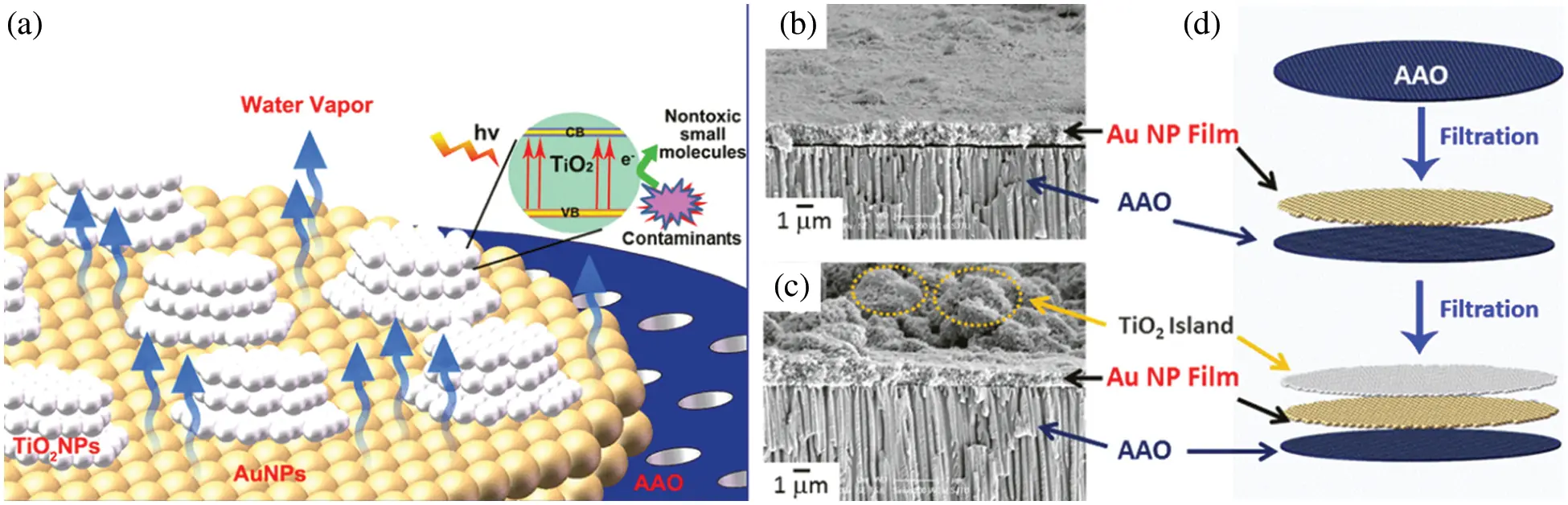

Figure 9: Biofunctional membrane for purification of contaminated water. (a) Design of Bifunctional TiO2-Au-AAO membrane with AAO at bottom Au in the middle and TiO2 at top, (b) Cross sectional SEM image of two layered structure (Au Np/AAO), (c) Cross sectional SEM image of three layered structure (TiO2/AuNp/AAO), (d) Schematic illustration of preparation method. Reproduced from [107]. Copyright 2015 American Chemical Society

images

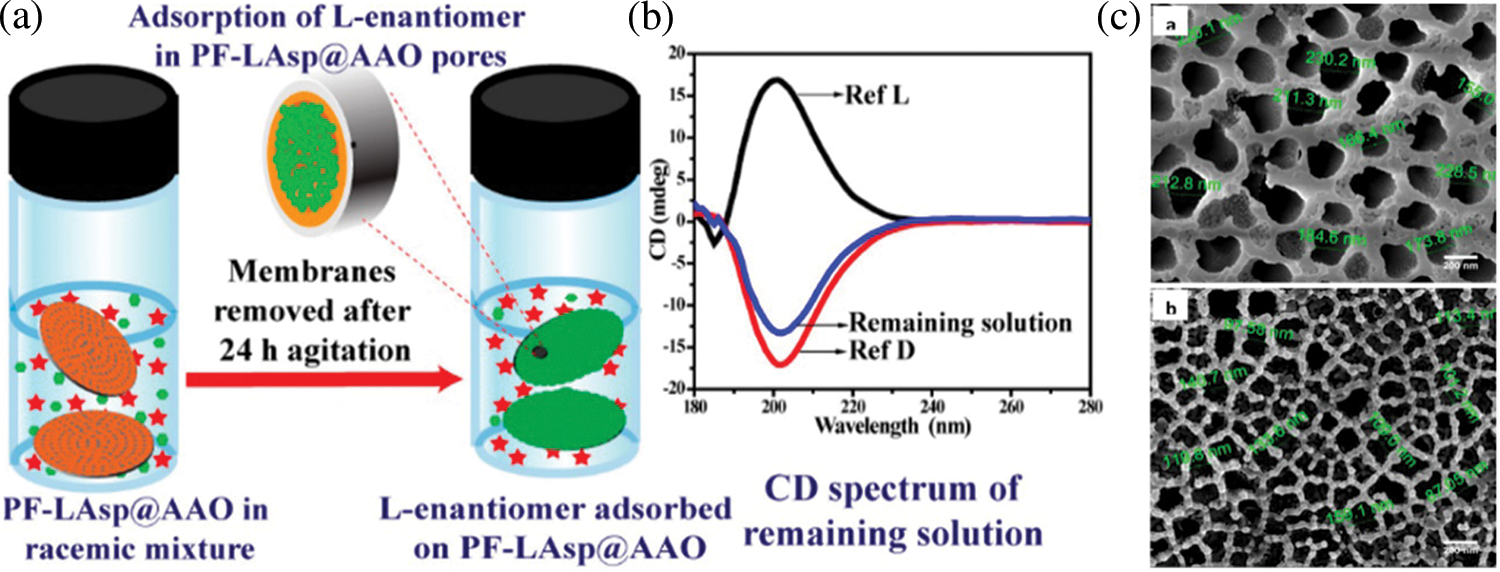

Figure 10: Functionalized AAO membrane for enantioselective separation. (a) Illustration of enantiomer separation process using Chiral Amino Acid Functionalized Polyfluorene Coated AAO (PF-Lasp@AAO), (b) CD spectrum of remaining solution after separation process, (c) FE-SEM micrographs of AAO membrane and polymerized AAO membrane. Reproduced from [105]. Copyright 2020 American Chemical Society

images

3.2.2 Prospects of AAO Membrane for Filtration

The AAO membranes have promising prospects in gases and liquids filtration applications. Chemical affinity is an essential factor, and functionalization of AAO membrane with various nanostructures are important factors to be studied for enhanced and optimized filtration. Research on the bonding of multiple molecules with the membrane and the decoration of nanostructures within pores can lead to efficient and highly selective filtration. The improved filtration performance may be proved highly promising to be applied in future areas.

3.3 AAO Membrane in Sensors

3.3.1 Applications of AAO Membrane in Sensors

Due to its unique properties, extensive studies have been performed on AAO to develop low-cost sensing devices. The characteristic responses of AAO membranes while interacting with light make them suitable for optically active devices. Effectively immobilized sensing elements within the pores can optimally interact with the analytes flowing through the pores due to the large surface-to-volume ratio of the nanopores. Also, AAO with nanoporous structure has the potential in single-molecule sensitivity. These properties make them suitable for the development of electrochemical and biosensors. Nanopores of AAO membranes are suitable for molecular transport and attachment, resulting in one device integrated with both separation and sensing functions. Additionally, AAO membranes have also been effectively used as a substrate to fabricate various humidity and gas sensors [122]. Highlights of sensing and biosensing applications of AAO membranes present in the literature are given.

Gorokh et al. [123] prepared two distinct aluminum oxide films using tartaric and malonic acid. The anodic films were first prepared, then tungsten oxide was sputter deposited on the films to form metal oxide test sensors. The results indicated that the sensitivity of the sensors using tartaric acid increases with the increased porosity of the membrane. Both the test sensors were unresponsive for carbon monoxide but showed an enhanced response for ammonia. Hang et al. [124] deposited metal oxide gas sensing film of Ga-doped ZnO (GZO), and GZO annealed in H2 (GZO-H) via electrophoretic deposition on AAO/Al structure. In the presence of an aqueous solution, the substrate and deposited film were destroyed because of the H2. On the contrary, the deposition was successful in the presence of ethanol as a dispersant. In gas sensing AAO layer act as an insulator, so its thickness plays a vital role in enhancing its resistance. Formaldehyde was used as a probe to verify the gas sensing property of the as-prepared structure. It was concluded that AAO/Al structure could be used to fabricate metal oxide gas sensors successfully. Lo et al. [125] used anodic aluminum oxide with nanopores of about 50–60 nm to implement inductive proximity sensors. The anodic aluminum oxide was used as a template for patterning spiral film of gold. Due to nanotexture, the gold film has significantly enhanced surface area that improved the inductance of the proximity sensor. Hong et al. [126] developed a metal-insulator-metal device in which the nanoporous AAO fabricated on the Si substrate act as an insulator. Au-AAO-Al layers on the Si substrate were implemented. The top metal layer deposited on the AAO has nanotexture, due to which the capacitive touch sensor has improved sensitivity. AAO based humidity capacitive sensors were investigated by Balde et al. [127] Paper was used as a substrate to fabricate the AAO layer. The results showed clearly that the geometry of AAO and the sensitivity of the sensors varies by voltage variation. The capacitive response of the sensor increased with temperature up to 45°C but decreased for measurements after two weeks. Also, the low sensitivity of AAO based capacitive humidity sensors under low humidity conditions has been addressed by Park et al. [128]. The AAO barrier oxide layer stored humidity within the pore and resulted in linear capacitance variation at relatively low humidity

Kumeria et al. [129] integrated AAO substrates coated with ultrathin gold layer into microfluidic devices. Two different strategies were used in this work to explore sensing properties based on reflective interferometric spectroscopy. Gold-modified AAO with Thiol binding and antibody-modified AAO with circulating tumor cells binding were studied. Results showed potential for biosensing devices with the admirable capability of detecting different analytes. Besides, Shaban et al. [69] fabricated nanoporous CdS/AOA bi-layer film using AAO as a template for spin coating of CdS film. Due to the positive experimental results, the bi-layer film was attributed as an efficient, low-cost, and relatively simple glucose biosensor. Label-free DNA detection is the most challenging application of Localized surface plasmon resonance sensors due to the petite size of the DNA molecules. Lednicky et al. [98] fabricated gold nanoparticles-epoxy surface nanocomposites using AAO as a template. The fabricated LSPR sensors were accurate in the detection of 20 bases long label-free DNA. Ma et al. [111] fabricated optical gas sensor with an AAO membrane as the air filter. The fabricated system could prevent contamination with particles above the size of 70 nm. However, the sensor’s sensitivity could be improved by tuning the pore size of the AAO membrane. Schematic representation for fabrication of a pressure sensor using AAO membrane with its current response under pressure is provided in Fig. 11. A pressure sensor with ultra-high sensitivity was reported. AAO membrane sandwiched between two wrinkled graphene layers acts as an insulator between two conducting graphene layers. The pores of the AAO membrane act as a pathway for current. The cyclic current response of the sensor was measured at a wide range of compressions, high compressions result in the ON state of sensors, and after removal of pressure, the sensors restore their initial state. The introduction of AAO membrane enhances sensitivity and reduces energy consumption as isolation of the graphene layers acts as an off state [130]. Few notable applications of AAO in sensing are given in Table 5 [98,106,111,115,123,126128,130140].

images

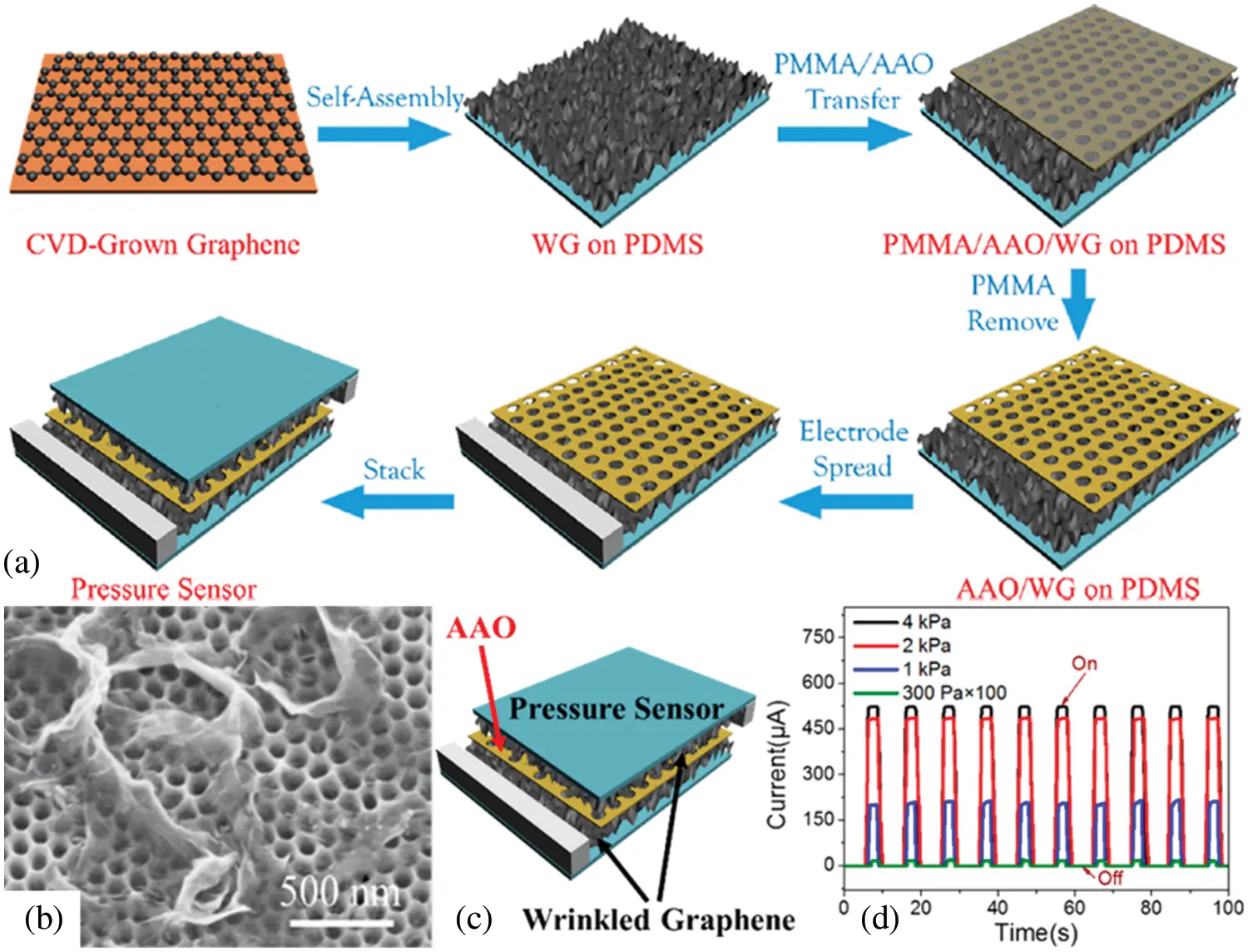

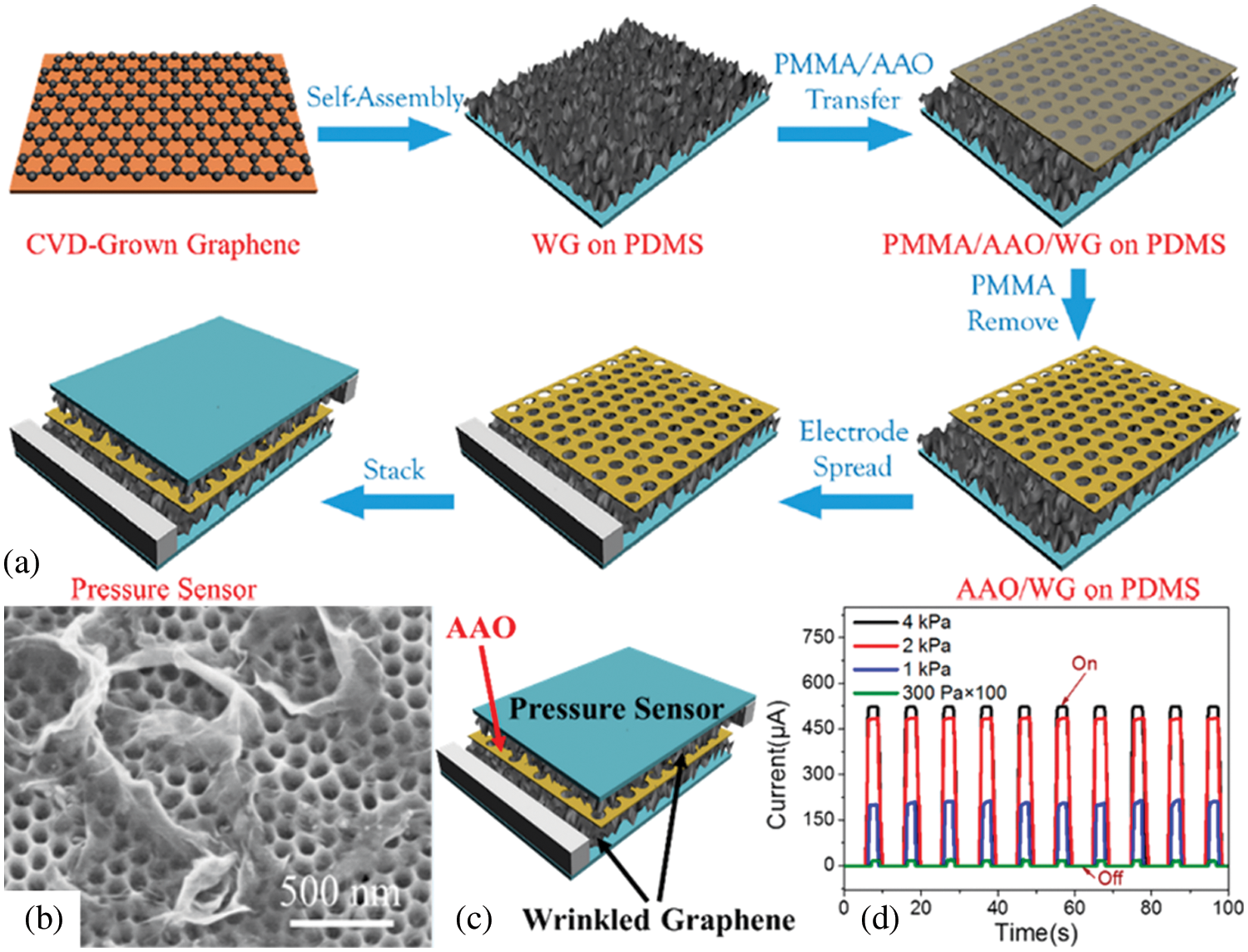

Figure 11: Ultrathin Pressure Sensors AAO membrane for insulation of two graphene layers. (a) Schematic representation of steps for fabrication process of pressure sensor, (b) SEM image of WG on AAO membrane, (c) Current response under various pressure. Reproduced from [132]. Copyright 2017 American Chemical Society

images

3.3.2 Prospects of AAO Membrane in Sensors

AAO membranes have promising prospects in sensing applications. High sensitivity and outstanding sensing performance of AAO membranes have been reported. Further progress in superior sensing performance is expected through structural improvement and chemical modification. AAO based implantable biosensors can be explored to be used as immunosensors for biological systems monitoring. So, miniaturized and integrated lab on chip systems based on AAO membranes may further develop sensing applications. For further advances in AAO based sensing and biosensing devices, bio-diagnostics and environmental toxic agent detection are the main focus areas.

3.4 AAO Membrane in Drug Delivery

3.4.1 Applications of AAO Membrane in Drug Delivery

A drug delivery system aims to deliver a definite amount of medicine to a specific location at a precise time [141,142]. This method helps in the targeted medication delivery, but the system’s main challenges are bypassing hepatic metabolism and constant drug release to avoid multiple doses [143]. Drug delivery systems can be categorized as osmotic and diffusion-controlled membrane systems. The osmotic system contains a semi-permeable polymeric membrane that is permeable to water but not permeable to the drug. While diffusion-controlled membranes systems work on the diffusion principle, the transport of the drug across the membrane and the thickness of the membrane determines the drug release. In this type of system, porous as well as non-porous membranes can be used [9].

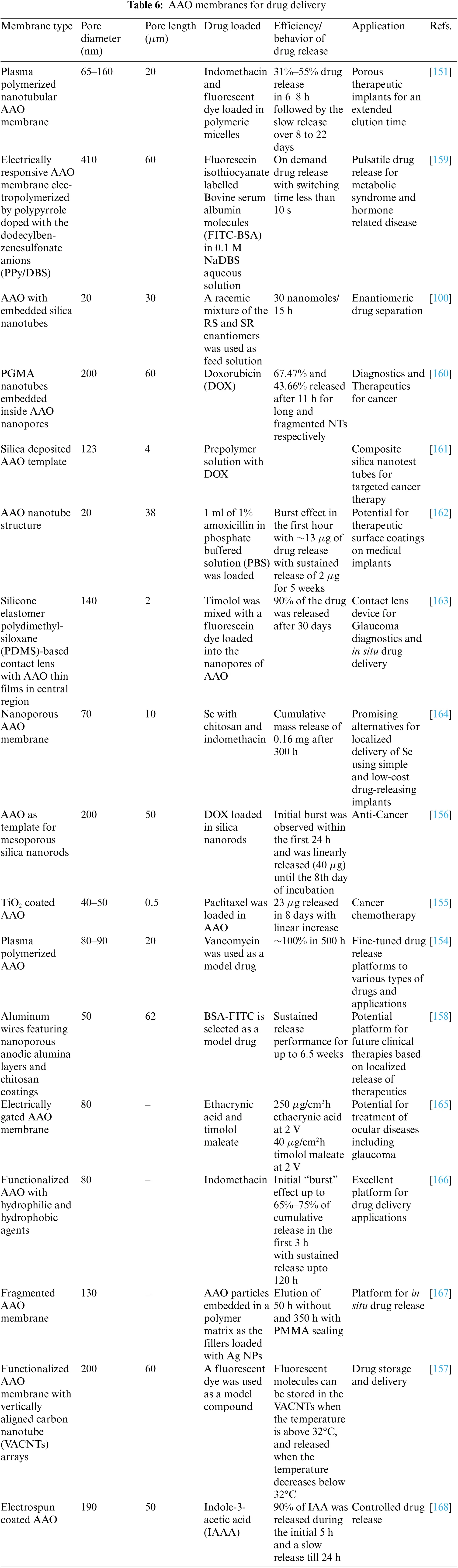

The properties like chemical stability and the possibility of functionalization of membrane surface for enhanced targeted drug delivery make anodic aluminum oxide membrane an excellent candidate to be used as a drug delivery system [70]. The intracellular behavior of tubular AAO structure has been investigated to develop new pathways for AAO nanotubes to be used as drug carriers for the targeted delivery of drugs [144]. In nanomedicine, nanomaterials have gained much attention from researchers to establish reliable drug delivery systems [145]. AAO membrane can also be effectively used to form hollow nanostructures, these hollow nanostructures can be used as drug carriers after the encapsulation of drugs [146149]. Piezoelectric nanorobots referred to as nanoeels using AAO templates have also been reported for targeted drug delivery. With the help of a magnetic field, these nanoeels could be steered to the target location for on-demand drug release [150].

Polymeric micelles as nanocarriers loaded in AAO membrane can also be used to deliver poorly soluble drugs. The deposition of ultrathin polymer film via the plasma polymerization method helps in the constant release of medication for an extended period [151]. La Flamme et al. [152] used AAO biocapsules fabricated by anodization for controlled release of insulin for immunoisolation. the study proved that cell density and capsules transport area play a vital role in the optimization of the output of the device. Kang et al. [153] fabricated AAO on stents for controlled release of 2-deoxyadenosine. The effect of pore size and diameter on the drug release was studied. The results indicated that the amount of drug released during a specified time interval was directly proportional to the pore diameter and inversely proportional to the pore depth. Simovic et al. [154] combined structural and chemical modification of the pores of AAO membrane by plasma polymer deposition. They proposed that the plasma polymer layer would help control the diameter of pores at the surface of the membrane hence resulting in controlled drug release. It was concluded that the plasma polymerization reduced pore size at the surface and helped modify the physical and chemical properties. This method provides enormous flexibility for fine-tuning the drug release. In a study [155], the effect pore diameter and pore depth of AAO membrane for drug release of Paclitex, a drug used in cancer chemotherapy. The results showed that the diameter of the pores does not affect. However, pore depth has a direct relation with drug release. Park et al. [156] used an AAO membrane to fabricate mesoporous silica nanorods for controlled release of the anti-cancer drug doxorubicin. The nanorods proved to be ideal for cancer treatment, and the addition of Na content to the nanorods results in increased biodegradation speed of the nanorods.

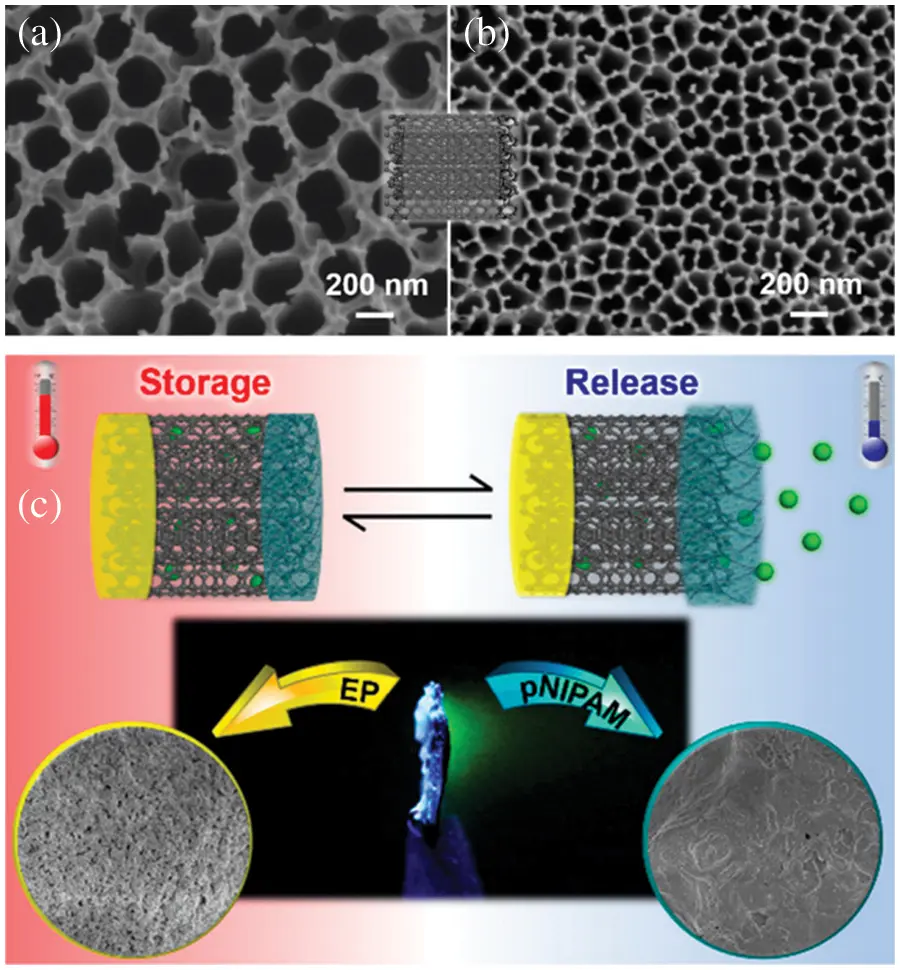

Fig. 12 presents a schematic of drug storage and release using aligned caron nanotubes embedded in AAO for the controlled release of drugs. Nanocontainers for temperature dependent drug delivery were designed by functionalizing one end of the CNTS with thermoresponsive hydrogel, and the other end was functionalized with electrophoretic paint. The functionalized CNTs were embedded in uniform pores of AAO. Fluorescein molecules were stored in nanocontainers, and unidirectional release from the containers below 32°C was observed. The functionalized VACNTS embedded in AAO pores has the potential to be used as drug containers and temperature-dependent controlled drug delivery [157]. Chitosan functionalized AAO membrane for the formation of drug release system with the schematic and experimental setup is provided in Fig. 13. Therapeutics releasing system was proposed by C. S. Law. For nanocontainers’ formation, the surface of Al nanowires was anodized and coated with chitosan, a biocompatible polymer. The nanopores were filled with bovine serum albumin molecules labeled with fluorescein. A series of experiments were performed under static and dynamic conditions to study the therapeutic release from the nanocontainers. The effect of temperature on drug release under static condiction and dynamic conditions is presented in Figs. 10i and 10j. Enhanced degradation and diffusion rate of polymer molecules result in a much slower release under static conditions [158]. Various applications of AAO membrane in drug delivery systems are given in Table 6 [100,151,154168].

images

Figure 12: Modified VACNTs embedded in AAO for controlled drug release, SEM images of (a) top and (b) bottom parts of VACNTs inside the AAO membrane, (c) Schematic illustration of fluorescein storage and release mechanism from Electrophoretic paint (EP) at right and poly(N-isopropylacrylamide) (pNIPAM) at left and optical image of fluorescein released as a function of time at center. Reproduced from [157]. Copyright 2020 American Chemical Society

images

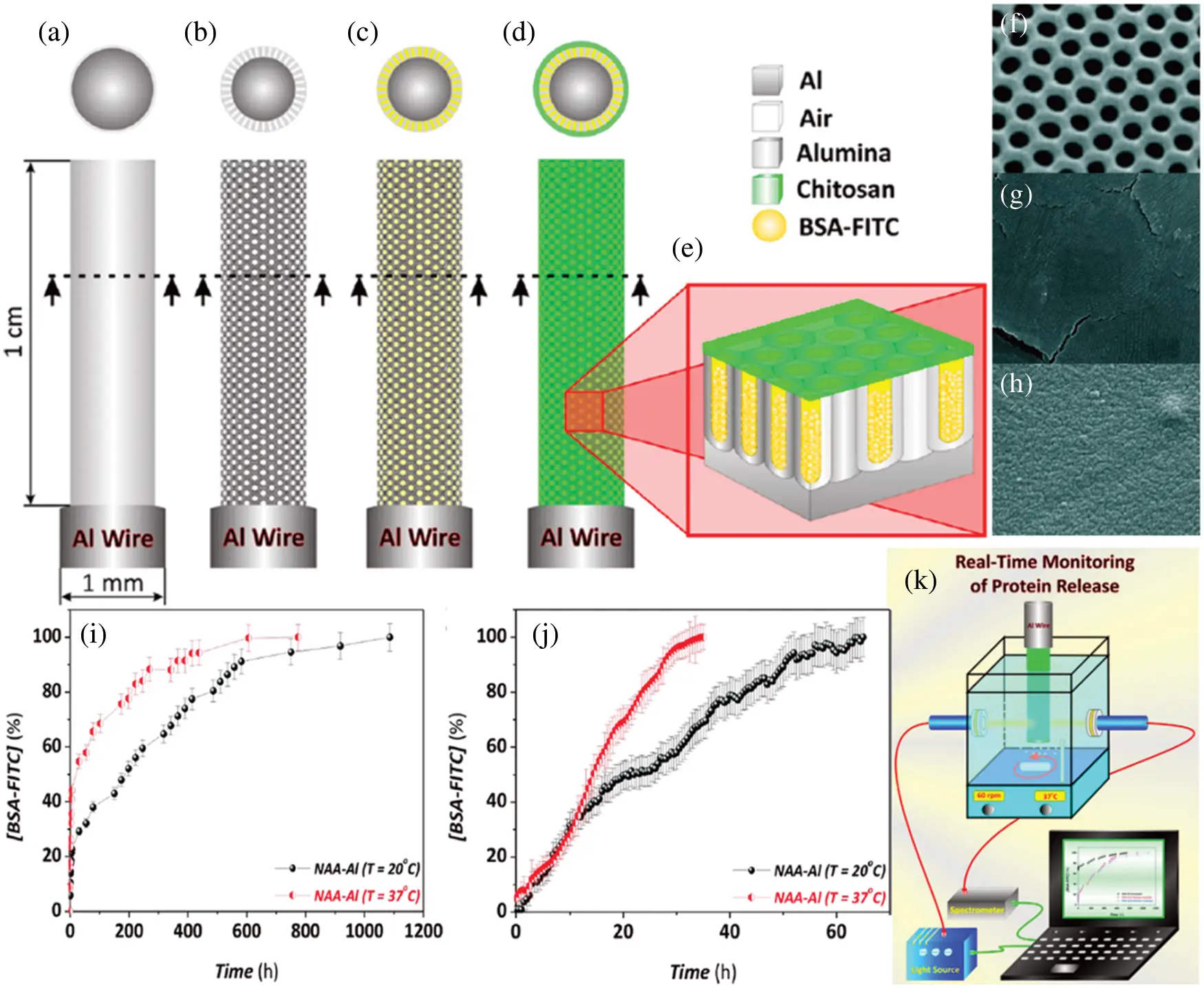

Figure 13: Therapeutics releasing AAO nanowires. Schematic representation of proposed therapeutic releasing system formation (a) electopolished Al wire, (b) after anodization (c) after protein loading (d) after chitosan coating, (e) cross sectional view, (f) SEM of nanoporous AAO-Al wire after pore widening (scale bar = 250 nm), (g) top view of NAA-Al wire after 1 cycle of chitosan coating) (scale bar = 1 μm), (h) top view of Nanoporous AAO-Al wire after 5 cycles of chitosan coating (scale bar = 1μm), effect of temperature on protein release performance from chitosan-coated NAA-Al wires under static (i) and dynamic conditions (j), (k) schematic of experimental setup to check therapeutic releasing performance. Reproduced from [158]. Copyright 2015 American Chemical Society

images

3.4.2 Prospects of AAO Membrane in Drug Delivery

AAO membranes have been used for effective drug delivery, but there is still plenty of room for advancement. Drug loading inside cavities of AAO membranes can be enhanced by emphasizing stable chemistries and modified anodization procedures. Furthermore, for successful drug delivery platforms, research related to the biocompatibility of the membrane to be used for delivering therapeutics and testing several medications could be crucial. The critical point is to redirect the published work for in vivo applications. For this purpose, the drug delivery system can be integrated with sensors or microchips for sustained and targeted drug delivery. Recently a power contact lens has been reported that utilizes AAO membrane as iop sensors, drug delivery and detection of ocular diseases biomarkers [163]. Microchips for fluid transport and collection can be integrated with concentration sensors for measurement of glucose concentration.

3.5 AAO Membrane in Miscellaneous Fields

3.5.1 Applications of AAO Membrane in Miscellaneous Fields

Highly variable dimensions make AAO capable of other significant applications including optical, electrical devices and several applications in biomedical. Fabrication of liquid crystal display (LCD) panels using AAO membrane has been reported. The nanocavities of the AAO membrane were filled with liquid crystal molecules. Accurately aligned liquid crystals in AAO exhibited excellent performance to be used in an electro-optical device [169]. Gold nanoparticles deposited AAO membrane has been used to prepare plasmonic absorber with the ability to absorb a wide wavelength range. This plasmonic absorber can also be used in applications like solar steam generation [170].

Davoodi et al. [171] presented the idea of nonporous AAO usage in tissue culture, biofunctionalization, drug delivery, and biosensing. Cyclic and pulse anodization was used to get uniform pores. Moreover, AAO can also be combined with biomaterials to form a composite scaffold for greater advantage. Three AAO films have different pore sizes for application as nano topological apparatuses in disease research. Cell morphology and attributes were subject to the pore size of AAO layers. AAO-1 layers (∼22 nm) did not prompt adjusted cell morphology, though AAO-2 and AAO-3 films were instigated around. Subsequently, permeable AAO films were helpful nano topological instruments for in vivo disease research because of their capacity to incorporate natural cell adhesion and growth on the anodized aluminum oxide membrane data, dependent on the cell microenvironments. The permeable AAO films like in vivo malignant growth conditions very well may be utilized for malignant growth target treatment [172].

Electric vehicles appear to be a reasonable contender to tackle the energy deficiency issue. The issues with the current lithium-particle battery are the low energy thickness restricted by the graphite anode. Also, the development of lithium dendrites that use lithium metal as an anode will prompt serious wellbeing issues. The utilization of AAO films has been proposed to improve the presentation and the security of lithium metal batteries [173]. Aluminum and its compounds are by and large used essentially for marine and clinical applications. An essential procedure to make polyaniline/chitosan/zinc stearate superhydrophobic coatings on aluminum with a small-scale nano surface structure by polymerization of aniline and sworn statement of chitosan and zinc stearate covering is also accounted for. The superhydrophobic surface shows the most important water-repellent property, which is liable for the antiadhesion of microorganisms. Also, incredible erosion obstruction of aluminum [174]. AAO has also been reportedly used for passive radiative cooling. Silica-coated porous AAO shows perfect spectral emissivity in the atmospheric window. This proposed approach can be used for low-cost and efficient radiative coolers applications [175].

Schematic illustrations of AAO membrane for applications in miscellaneous fields like electronic packaging technologies, energy harvesting, and optoelectronics are shown in Figs. 1416, respectively. Copper nanopillar arrays embedded in pores of the AAO membrane for electronic interconnection are shown in Fig. 14. Superior anisotropic thermal conductivity was observed by CuNPA-filled AAO film. The 3-D package of film soldered with the Copper substrate is compatible with the packaging of high-density electronic and power devices [176]. Fig. 15 represents an ion pool structured nanofluidic diode designed by sandwiching AAO between oppositely charged layers of ZIF-8 and WO3 for excellent rectification performance. Changes in pH can affect the surface charge density of ion pool nanochannel. This pH-responsive ion pool structured membrane can be used in energy harvesting applications [177]. Carbon black nanoparticles sprayed onto the AAO membrane fabricated on the silicon substrate to form metal free absorber are illustrated in Fig. 16. The reflectivity of the metal-based plasmonic absorbers was studied. The results indicate average absorbance of 97.5% can be achieved for the wavelength range 2.5–15.3 μm. These absorbers are suitable for applications in optoelectronics and photonics [178].

images

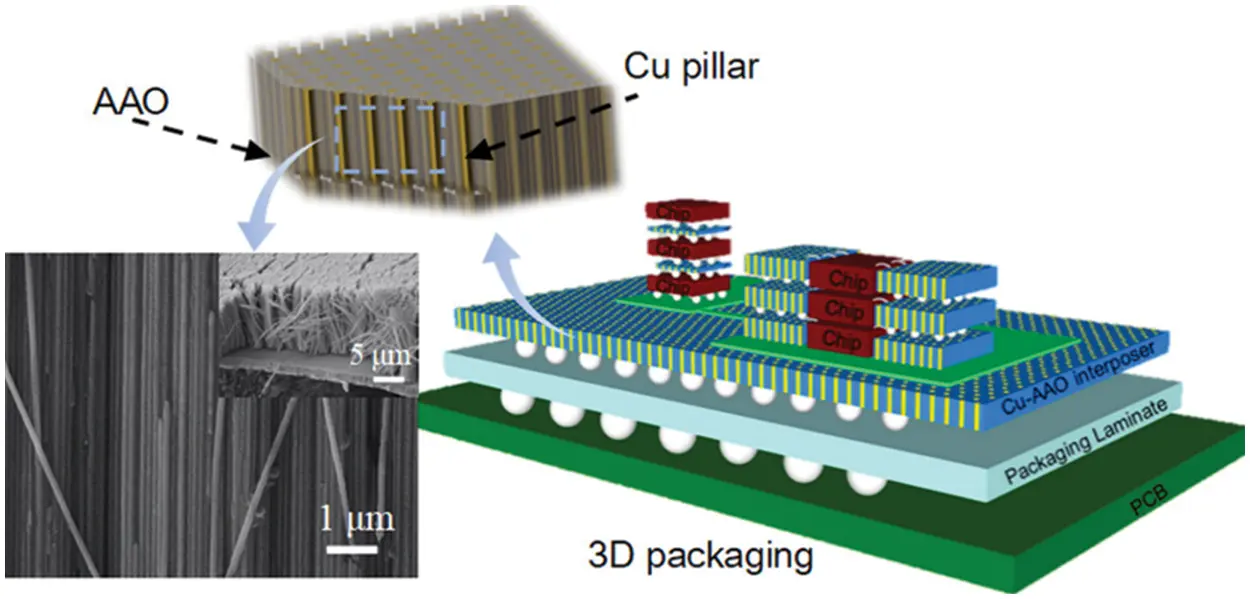

Figure 14: Schematic and SEM image of copper nanopillar array-filled AAO for anisotropic thermal conductive interconnectors. Reproduced from [176]. Copyright 2019 American Chemical Society

images

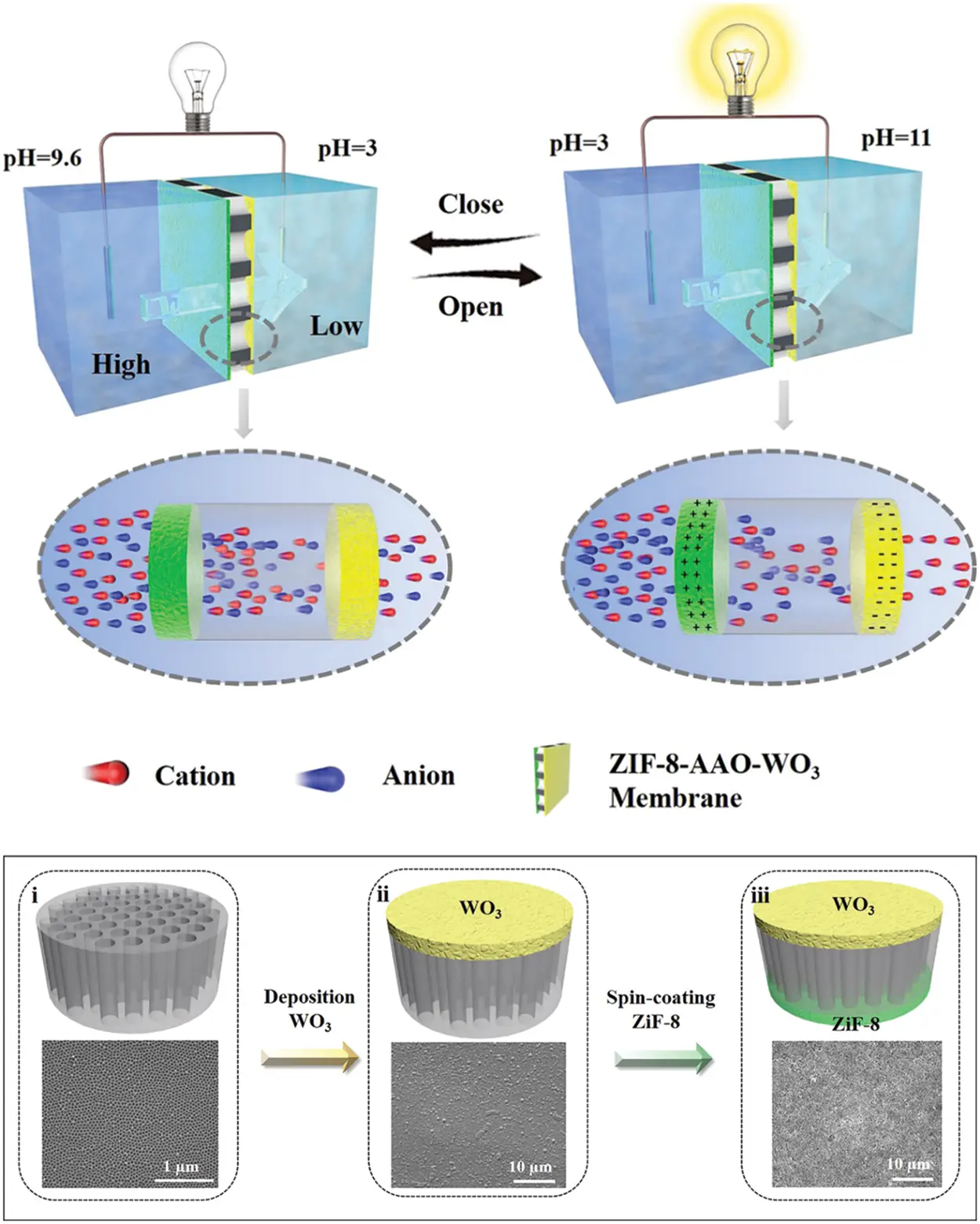

Figure 15: Schematic representation of the pH-driven Ion pool-structured multichannel gating membrane for the Osmotic energy harvesting device (top), (i−iii) SEM images with step wise fabrication description of ion pool-structured nanofluidic diode with membranes of AAO, AAO−WO3, WO3−AAO−ZIF-8. Reproduced from [177]. Copyright 2021 American Chemical Society

images

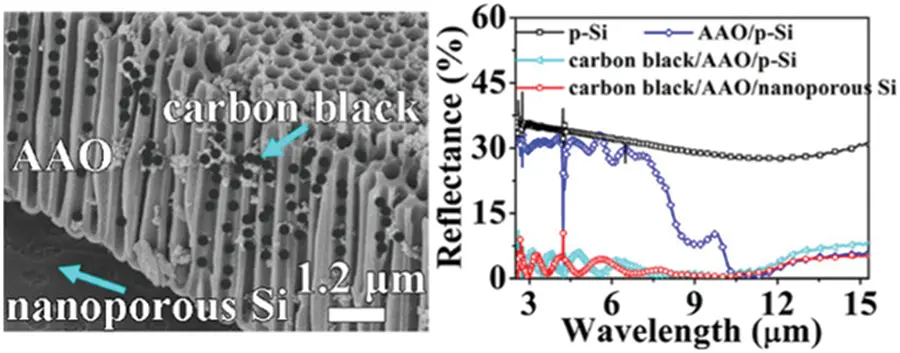

Figure 16: Carbon Black/AAO Templates on Nanoporous Si for optoelectronics and integrated photonics. SEM image of self assembled carbon black/AAO on Si (left), reflectivity of carbon black onto AAO templates on nanoporous Si (right). Reproduced from [178]. Copyright 2019 American Chemical Society

Soft computing techniques have been applied by many researchers for advanced applications of AAO membrane. Patel performed numerical simulations using COMSOL Multiphysics to check whether nanomembrane could function as a vibro-active nano filter. MATLAB simulations have also been performed to optimize the pore diameter of the membrane. Researchers used ANSYS analysis to study mechanical, fluid flow properties of the membrane. The real-life conditions utilization during analysis helps estimate the results of pratical applications. These techniques may be efficient for more advanced applications with a reduction of cost of practical optimization of application [15,103,110].

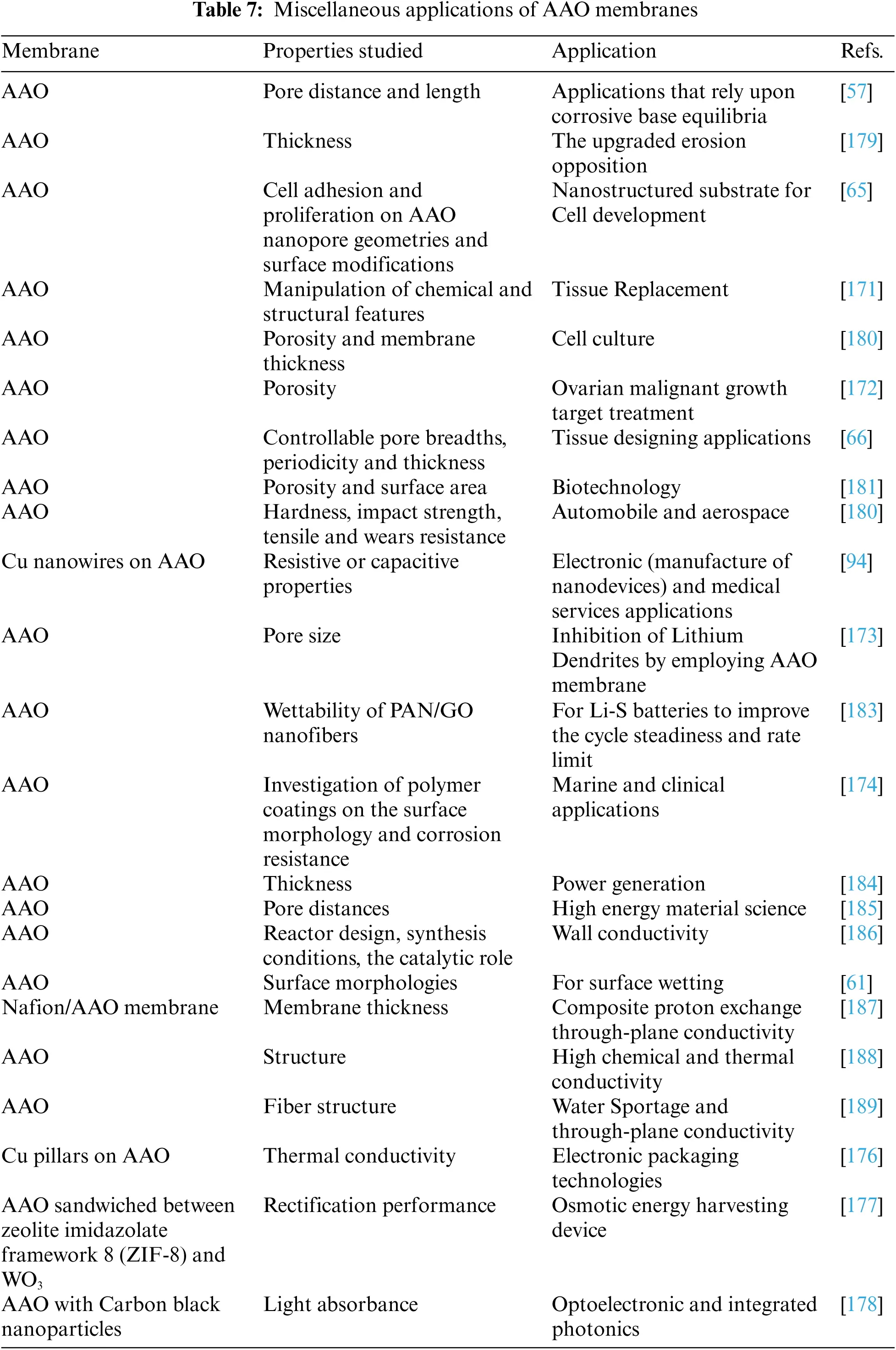

Table 7 provides applications of AAO in miscellaneous fields [57,61,65,66,94,171,176189].

images

3.5.2 Prospects of AAO Membrane in Miscellaneous Fields

The prospects of AAO membrane applications translate into infinite possibilities of nanofabricated devices with enhanced properties and improved performance. Assembly of devices with enhanced properties devoted to specified application purposes, like energy and storage devices enhancing the storage capacity, can be achieved efficiently. The controllable features can be proved fruitful in the pharmaceutical, food, and energy industry. AAO based broadband absorbers can be used with other technologies for efficient thermal imaging and infrared detection. Nanochannels arrays pave the path for optimized nanofluidic diodes with applications in energy conversion zones.

4  Challenges of AAO Membranes Applications

Various challenges are associated with the application of AAO membranes. Two main types of technical challenges are worth highlighting: those related to evaluating the performance of devices and those related to scale-up under real-use conditions. Scaling up includes quality control of mass-produced nanoscale components, consistency of component integration, impurity management. Real-use suggests testing of the effect of deviations from prescribed operating procedures. There is a gap in knowledge related to the coating of nanomaterials with anodized aluminum oxide. Exposure and toxicity make it challenging to incorporate safety parameters into early decisions or designs. For the applications of AAO incorporated nanomaterials, the production of nanomaterials is expensive, and the characterization procedure of nanomaterials is also costly. Premium materials are required to ensure the reliability of applications of the nanomaterials embedded in the AAO membrane. Solar thermal applications need hard-anodized aluminum coatings, but the challenge in implementation is that AAO coating has higher rates; the higher budget is the major problem for producing any novel innovation for the extensive application area.

Examine AAO nanopores as cell interfaces for long-term in vivo response to multiple tissues is a challenge in developing future innovative biomedical devices that incorporate. AAO based nanosensors require comprehensive testing to confirm that they are reproducible and can perform accurately in the appropriate environment. An economic and business challenge in implementing AAO nanosensors is dealing with protection and intellectual property. Manipulation of the AAO membrane-based materials is complex on the engineering and nanoscale band-gap alignments, which is advantageous for separation, generation of charge, and transportation is worthy of intensive attention in the future. Another challenge is the selection of different functional materials and assembling them toward an integrated device. In energy storage and conversion applications. For energy storage and conversion applications, methods like electrochemical deposition, physical vapor deposition, spin coating, and sol-gel [190192] infiltration are widespread for filling or covering the AAO template with active materials. The resulting materials are not usually single crystalline. So, it is a challenge how to improve crystal quality becomes critical to reducing charge-carrier loss in crystal imperfections. Comprehensive and systematic investigations are still required to thoroughly understand the transfer dynamics of photogenerated charge carriers in the complicated surface surroundings and explore a more effective means for harnessing solar energy. However, because basic science is constantly evolving, and patent granting organizations may lack adequate functional nanotechnology expertise to evaluate applications honestly, patents create considerable barriers to product commercialization in the field of nanotechnology.

The surface of the AAO membrane has rich content of hydroxyl groups that allow them to be easily modified with the help of organic molecules according to desirable functions. Despite all these techniques used for the modification of AAO, the application of functionalized AAO membranes will depend on the unpredictable needs of the market. Yet, these techniques are only implemented by the developments in the performance of the devices and cost. This area of science and development still holds different opportunities and challenges for researchers to investigate.

5  Conclusion and Future Directions

Porous membranes with desired features resulted in the development of membrane technology. Different methods have been used for the formation of such membranes. In this paper, we have presented an overview of different methods for porous membrane formation. Different anodization methods have been used to form AAO membranes and can be used to control the geometric features of the membranes by varying the parameters. The effect of different anodization parameters on the morphology of AAO porous membrane and its properties are presented. Empirical relations defining the geometric structure parameters of porous AAO have also been recognized. Cost-effective and self-organized anodization makes it attractive for high-tech industries and biomedical applications. Different applications reported in the literature in various fields are discussed, along with detailed applications. The following essential points can be deduced from applications of AAO.

1.    The applications of AAO strongly depend on the size and chemical affinity as the membrane parameters can be controlled easily.

2.    The AAO membranes can utilize all of the selectivity paradigms by modification using various molecules.

3.    Effectively immobilized sensing elements within the pores can optimally interact with the analytes flowing through the pores due to the large surface-to-volume ratio of the nanopores.

4.    Nanochannels of AAO promote the transfer of matter. In the presence of a barrier layer, the nanopores mimic nanocavities for containing medicine for targeted release or formation of various nanostructures with multiple applications.

5.    Proper functionalizing of the surface properties and defined geometry of porous AAO can further expand its applications, resulting in up-and-coming prospects for nanotechnology applications of porous AAO membranes.

The highly variable dimensions of AAO membranes make them capable of being used in many applications. However, depending on the unpredictable requirements, there are many challenges to overcome for AAO to be used commercially. More efforts are required to improve existing methods of functionalization of membrane and the development of effectual techniques for the development of desired nanostructures using AAO. Enhanced stability and durability with improved methods may open new paths for promising applications.

Acknowledgement: This article is a part of Ph.D. thesis of Saher Manzoor. S. Manzoor: Draft writing; M. W. Ashraf & S. Tayyaba: Guidance and writing help; M. I. Tariq & M. K. Hossain: Reviewing and editing.

Funding Statement: The authors received no financial support for the research of this article.

Conflicts of Interest: The authors declare that they have no competing interests.
