DOI: 10.32604/cmes.2022.018496

ARTICLE

Numerical Computational Heuristic Through Morlet Wavelet Neural Network for Solving the Dynamics of Nonlinear SITR COVID-19

Zulqurnain Sabir1, Abeer S. Alnahdi2,*, Mdi Begum Jeelani2, Mohamed A. Abdelkawy2,3,*, Muhammad Asif Zahoor Raja4, Dumitru Baleanu5,6 and Muhammad Mubashar Hussain7

1Department of Mathematics, Hazara University, Mansehra, Pakistan
2Department of Mathematics and Statistics, Faculty of Science, Imam Mohammad Ibn Saud Islamic University (IMSIU), Riyadh, Saudi Arabia
3Department of Mathematics, Faculty of Science, Beni-Suef University, Beni-Suef, Egypt
4Future Technology Research Center, National Yunlin University of Science and Technology, Yunlin, Taiwan
5Department of Mathematics, Cankaya University, Ankara, Turkey
6Institute of Space Sciences, Magurele-Bucharest, Romania
7Department of Mathematics, University of Punjab, Jhelum Campus, Jhelum, Pakistan
*Corresponding Authors: Mohamed A. Abdelkawy. Email: maohamed@imamu.edu.sa; Abeer S. Alnahdi. Email: asalnahdi@imamu.edu.sa
Received: 29 July 2021; Accepted: 11 November 2021

Abstract: The present investigations are associated with designing Morlet wavelet neural network (MWNN) for solving a class of susceptible, infected, treatment and recovered (SITR) fractal systems of COVID-19 propagation and control. The structure of an error function is accessible using the SITR differential form and its initial conditions. The optimization is performed using the MWNN together with the global as well as local search heuristics of genetic algorithm (GA) and active-set algorithm (ASA), i.e., MWNN-GA-ASA. The detail of each class of the SITR nonlinear COVID-19 system is also discussed. The obtained outcomes of the SITR system are compared with the Runge-Kutta results to check the perfection of the designed method. The statistical analysis is performed using different measures for 30 independent runs as well as 15 variables to authenticate the consistency of the proposed method. The plots of the absolute error, convergence analysis, histogram, performance measures, and boxplots are also provided to find the exactness, dependability and stability of the MWNN-GA-ASA.

Keywords: Nonlinear SITR model; morlet function; artificial neural networks; Runge-Kutta; treatment; genetic algorithm; treatment; active-set

1  Introduction

Human beings faced many challenges and obstacles, like floods, earthquakes, and viruses, etc. A Few dangerous and spreading diseases are dengue fever produced by the instinctive mosquitos. It broadly feasts in the African, American, South Asian countries, Oceania regions, Eastern Mediterranean and the Caribbean. It is a kind of perilous and serious virus that wrapped about 0.5 million people each year, but due to the high recovery rate, most of the people get better in a short time. The key indications of the virus are high fever, headache and joint pain. Some other infection base diseases that are hot topics for the researchers are Lassa, Ebola and HIV. To spread and avoid the above infection-based viruses, various medical indications have been extensively applied.

The whole world is now facing coronavirus (COVID-19) that is a deathly, dangerous and spreading disease. This dangerous virus is tremendously transferrable through droplets [1]. The ratio of those individuals that are affected by COVID-19 is so high. At the end of 2019, the first case was reported in the Hubei Province, Wuhan, China [2,3]. Recently, the proper treatment and medicine of the COVID-19 are still not available. However, the vaccination process in some countries is just started to avoid the risk from COVID-19. To avoid COVID-19, different countries did precautionary measures in which lockdown was a common measure. The cases of COVID-19 reported in the whole world mainly in USA, Brazil, India and Europe. The important indications of the COVID-19 are flue, tiredness, fever and dry cough [4]. The COVID-19 badly affected those persons that are suffering some diseases like heart issues, diabetes, chronic respiratory, cardiovascular and cancer. Those who feel these symptoms of dry cough, breathing difficulty, flue and high temperature, should directly contact the doctor.

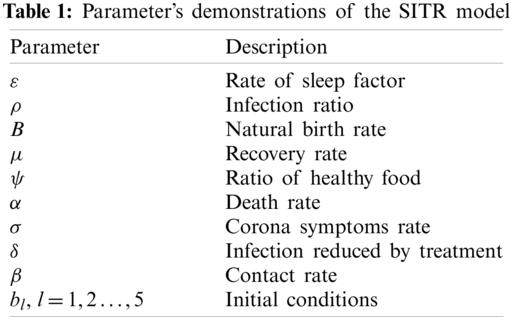

The SITR fractal model basis on the COVID-19 is dependent upon four classes, ‘susceptible (S1 and S2)’, ‘infected (I)’, ‘treatment (T)’ and ‘recovered (R)’, mathematically written as [5]:

{S1(Ω)=δβT(Ω)(α+βI(Ω))S1(Ω)+B,S1(0)=b1,S2(Ω)=δβT(Ω)(α+βI(Ω))S2(Ω)+B,S2(0)=b2,I(Ω)=(σ+α+μ)I(Ω)+β(S1(Ω)+S2(Ω))I(Ω)+βδT(Ω),I(0)=b3,T(Ω)=(ψρ+εα)T(Ω)+μI(Ω),T(0)=b4,R(Ω)=ρT(Ω)αR(Ω),R(0)=b5, (1)

where S1(Ω) and S2(Ω) are both uninfected class from COVID-19 of young people and older or have serious diseases, I(Ω) is the class shows the infected people from coronavirus, T(Ω) is the treatment and R(Ω) is the recovered class. The detailed parameters are defined in Table 1.

images

This research aimsto solve the SITR fractal model of COVID-19 by designing the Morlet wavelet neural network (MWNN) along with the optimization of global and local search heuristics of genetic algorithm (GA) and active-set algorithm (ASA), i.e., MWNN-GA-ASA. The authors are inspired to solve the nonlinear COVID-19 fractal model by applying the proposed method due to the immense applications of stochastic computing solvers. Few of them are nonlinear singular delay differential model [6,7], multi-fractional multi-singular differential models [810], fractional-order pantograph Lane-Emden differential systems [11], prey-predator models [12], second grade nanofluidic system [13], heat transfer possessions in a Bodewadt flow [14], solution of functionally graded material of the porous fin model [15], HIV infection system [16], hybrid hydro-nanofluid Al2O3–Cu–H2O model [17], Ferrofluidic models [18], singular functional systems [19], magnetohydrodynamic squeezing flow model [20], Cattaneo-christov heat flux model [21], nonlinear optics [22], nonlinear Falkner-Skan systems [23], singular Thomas-Fermi system [24], thin-film flow of Maxwell nanofluidic model [25], mosquito dispersal nonlinear system [26], nonlinear corneal shape model [27], heat conduction based human head system [28], mathematical model for entropy generation system [29] and singular periodic models [30,31]. The novel features of the MWNN-GA-ASA are given as:

•   The design of MWNN is presented effectively to solve the nonlinear SITR fractal system of equations.

•   The proposed MWNN-GA-ASA is implemented effectively to solve the nonlinear dynamics of the COVID-19 fractal model.

•   Authentication of the performance through MWNN-GA-ASA is verified by overlapping the proposed results with the Runge-kutta solutions.

•   The absolute error (AE) to solve the SITR fractal model is obtained in good measures to demonstrate the worth of the designed method.

•   The reliability of the proposed method is observed using the statistical measures to solve the SITR fractal model.

The rest of the paper’s parts are given as: Section 2 shows the methodology based on MWNN-GA-ASA and performance indices. Section 3 describes the results and discussions of the nonlinear SITR fractal model. The concluding remarks and future research directions are given in the last section.

2  Methodology

The designed procedures to solve the SITR fractal model is described in two parts:

1. Introduce a fitness function.

2. The optimization procedures of GA-ASA are described.

2.1 ANN Modeling

The representations of the systems given in (1) based on the continuous ANNs mapping to get the performances of each class of the model and its derivatives are given as:

[S^1(Ω),S^2(Ω),I^(Ω),T^(Ω),R^(Ω)]=[p=1muS1,pL(wS1,pΩ+vS1,p),p=1muS2,pL(wS2,pΩ+vS2,p),p=1muI,pL(wI,pΩ+vI,p),p=1muT,pL(wT,pΩ+vT,p),p=1muR,pL(wR,pΩ+vR,p)], (2)

[S^1(Ω),S^2(Ω),I^(Ω),T^(Ω),R^(Ω)]=[p=1muS1,pL(wS1,pΩ+vS1,p),k=1muS2,pL(wS2,pΩ+vS2,p),p=1muI,pL(wI,pΩ+vI,p),k=1muT,pL(wT,pΩ+vT,p),p=1muR,pL(wR,pΩ+vR,p)],

where W is the unknown weight vector and is to be calculated, given as:

W=[WS1WS2WIWTWR]tWS1=[uS1wS1vS1]t,WS2=[uS2wS2vS2]t,WI=[uIwIvI]t,WT=[uTwTvT]t,WR=[uRwRvR]t.

where

uS1=[uS1,1,uS1,2,uS1,3,,uS1,m],uS2=[uS2,1,uS2,2,uS2,3,,uS2,m],uI=[uI,1,uI,2,uI,3,,uI,m]uT=[uT,1,uT,2,uT,3,,uT,m],uR=[uR,1,uR,2,uR,3,,uR,m],ωS1=[wS1,1,wS1,2,wS1,3,,wS1,m],ωS2=[wS2,1,wS2,2,wS2,3,,wS2,m],ωI=[wI,1,wI,2,wI,3,,wI,m],ωT=[wT,1,wT,2,wT,3,,wT,m],ωR=[wR,1,wR,2,wR,3,,wR,m],vS1=[vS1,1,vS1,2,vS1,3,,vS1,m],vS2=[vS2,1,vS2,2,vS2,3,,vS2,m],vI=[vI,1,vI,2,vI,3,,vI,m],vT=[vT,1,vT,2,vT,3,,vT,m],vR=[vR,1,vR,2,vR,3,,vR,m].

The MWNN is not applied before for solving the SITR fractal model, mathematically MW function is written as [3234]:

L(Ω)=cos(1.75Ω)e0.5Ω2.

[S^1(Ω),S^2(Ω),I^(Ω),R^(Ω),T^(Ω)]=[p=1muS1,pcos(1.75(wS1,pΩ+vS1,p))e0.5(wS1,pΩ+vS1,p)2,p=1muS2,pcos(1.75(wS2,pΩ+vS2,p))e0.5(wS2,pΩ+vS2,p)2,p=1muI,pcos(1.75(wI,pΩ+vI,p))e0.5(wI,pΩ+vI,p)2,p=1muT,pcos(1.75(wT,pΩ+vT,p))e0.5(wT,pΩ+vT,p)2,p=1muR,pcos(1.75(wR,pΩ+vR,p))e0.5(wR,pΩ+vR,p)2,], (3)

[S^1(Ω),S^2(Ω),I^(Ω),R^(Ω),T^(Ω)]=ddΩ[k=1muS1,pcos(1.75(wS1,pΩ+vS1,p))e0.5(wS1,pΩ+vS1,p)2,k=1muS2,pcos(1.75(wS2,pΩ+vS2,p))e0.5(wS2,pΩ+vS2,p)2,k=1muI,pcos(1.75(wI,pΩ+vI,p))e0.5(wI,pΩ+vI,p)2,k=1muT,pcos(1.75(wT,pΩ+vT,p))e0.5(wT,pΩ+vT,p)2,k=1muR,pcos(1.75(wR,pΩ+vR,p))e0.5(wR,pΩ+vR,p)2,].

Using the above network, the objective function takes the form as:

ξ=ξ1+ξ2+ξ3+ξ4+ξ5+ξ6, (4)

ξ1=1Np=1N((S^1)p+(βI^p+α)(S^1)p+δβT^pB)2, (5)

ξ2=1Np=1N((S^2)p+(βI^p+α)(S^2)p+δβT^pB)2, (6)

ξ3=1Np=1N(I^k((S^1)p+(S^2)p)βI^p+(ασ+μ)I^pβδT^p)2, (7)

ξ4=1Np=1N(T^pμI^p(ερα+ψ)T^p)2, (8)

ξ5=1Np=1N(R^p+αR^pρT^p)2, (9)

ξ6=15(((S^1)0b1)2+((S^2)0b2)2+(I^0b3)2+(T^0b4)2+(R^0b5)2), (10)

where Ωp=ph,(S^1)p=S^1(Ωp),(S^2)p=S^2(Ωp),I^p=I^(Ωp),T^p=T^(Ωp),Nh=1 and R^p=R^(Ωp). The proposed results for each class of the nonlinear SITR fractal model are defined as S^1(Ω), S^2(Ω), I^(Ω), T^(Ω) and R^(Ω). Similarly, ξ1, ξ2, ξ3, ξ4, ξ5 and ξ6 indicate the objective functions using the differential forms and initial conditions.

2.2 Optimization: GA-ASA

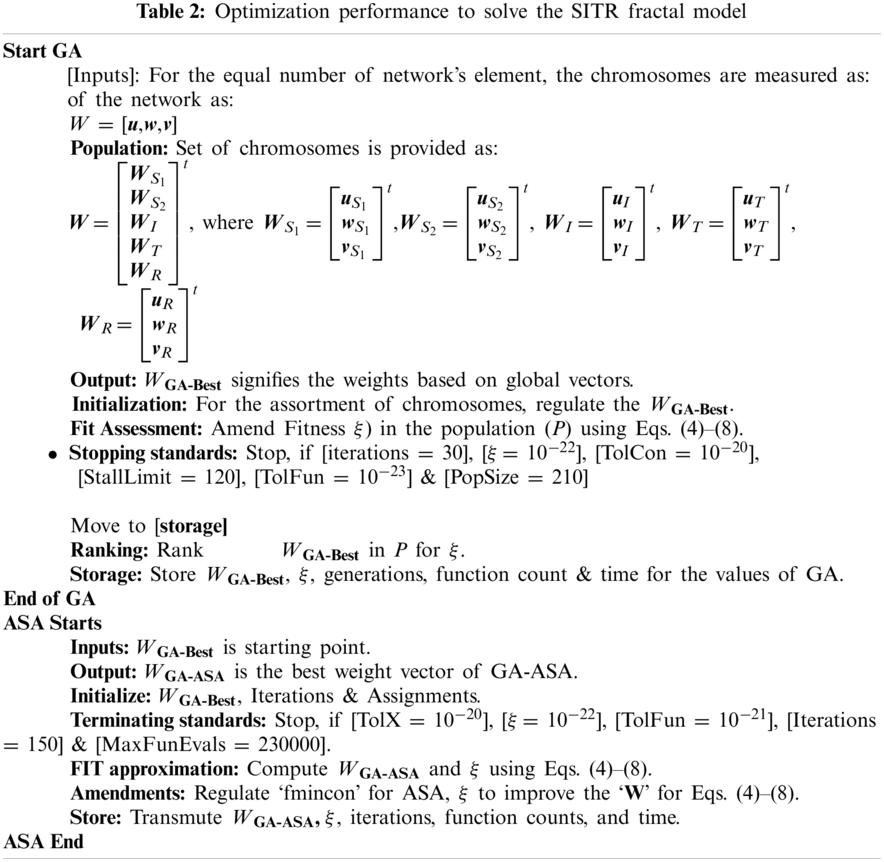

The detail of GA-ASA is provided to optimize the error function based on the COVID-19 nonlinear system is provided in this section.

GA is known as a global search procedure applied broadly to solve constrained and unconstrained problems. GA works through the procedures of crossover, selection, elitism and mutation operators. In recent, GA is executed in lung cancer prognosis [35], wellhead backpressure control system [36], nonlinear circuits [37], heterogeneous mosquito release ecosystem [38], active noise control systems [39], multi-fractional multi-singular singular model [40], gas tungsten arc welding process [41], adjusting sensor acquisition frequency [42], multilayer piezoelectric transducer for broadband structures [43] and singular nonlinear system [44].

The process of GA converges rapidly to hybridize with the appropriate local search method by taking the best values of GA as an initial input. Consequently, an effective local ASA is implemented to adjust the outcomes of the global search procedure. Recently, ASA is used in pricing American better-of option [45], non-smooth large-scale optimization systems with box constraints [46], regularized monotonic regression [47], cardiac defibrillation [48], multivariate integration under modest error demand [49] and predictive control for a ball and beam system [50]. The present investigations are associated to solve the SITR fractal model using the GA-ASA hybridization. The comprehensive detail of MWNN-GA-ASA is provided in the pseudocode-based Table 2.

images

3  Performance Indices

The mathematical performances of the mean absolute deviation (MAD), variance account for (V.A.F) and Theil’s inequality coefficient (T.I.C) are provided to solve the nonlinear SITR fractal model, given as:

[MADS1,MADS2,MADI,MADT,MADR]=[1np=1n|((S1)p(S^1)p)|,1np=1n|((S2)p(S^2)p)|,1np=1n|(IpI^p)|,1np=1n|(TpT^p)|,1np=1n|(RpR^p)|] (11)

{[VAFS1,VAFS2,VAFI,VAFT,VAFR]=[(1var((S1)p(S^1)p)var(S1)p)×100,(1var((S2)p(S^2)p)var(S2)p)×100,(1var(IpI^p)var(Ip))×100,(1var(TpT^p)var(Tp))×100,(1var(RpR^p)var(Rp))×100,][EVAFS1,EVAFS2,EVAFI,EVAFT,EVAFR]=[|100VAFS1,100VAFS2,100VAFI,100VAFT,100VAFR|]. (12)

[TICS1,TICS2,TICI,TICT,TICR]=[1np=1n((S1)p(S^1)p)2(1np=1n(S1)p2+1np=1n(S^1)p2),1np=1n((S2)p(S^2)p)2(1np=1n(S2)p2+1np=1n(S^2)p2),1nk=1n(IpI^p)2(1np=1nIp2+1np=1nI^p2),1np=1n(TpT^p)2(1np=1nTp2+1np=1nT^p2),1np=1n(RpR^p)2(1np=1nRp2+1np=1nR^p2)]. (13)

4  Results and Discussion

In this section, the detail to solve the nonlinear SITR fractal is provided. The comparative studies using the Runge-Kutta numerical solutions designates the accuracy of MWNN-GA-ASA. Furthermore, statistical assessments express the precision of the proposed method to solve the nonlinear SITR fractal system.

4.1 SITR Fractal System

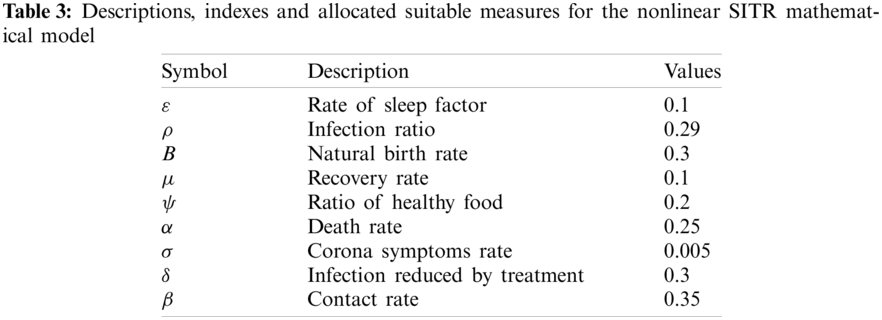

The suitable values of the parameter are provided in Table 3 and a simplified form of the model is given as:

images

The updated form of the nonlinear SITR model (1) using the above Table 3 values are written as:

{S1(Ω)=0.30.105T(Ω)(0.35I(Ω)+0.25)S1(Ω),S1(0)=0.65,S2(Ω)=0.30.105T(Ω)(0.35I(Ω)+0.25)S2(Ω),S2(0)=0.15,I(Ω)=0.105T(Ω)+0.35I(Ω)(S1(Ω)+S2(Ω))0.345I(Ω),I(0)=0.75,T(Ω)=0.25T(Ω)+0.1I(Ω),imtT(0)=0.35,R(Ω)=0.25R(Ω)+0.3T(Ω),R(0)=0.1, (14)

The objective function of the above system is shown as:

ξ=1Nk=1N([(S^1)p0.3+(0.25+0.35I^p)(S^1)p+0.105T^p]2+[(S^2)p0.3+(0.25+0.35I^p)(S^2)p+0.105T^p]2+[I^p+0.345I^p0.35I^p((S^1)p+(S^2)p)0.105T^p]2+[T^p+0.25T^p0.1I^p]2+[R^p+0.25R^p0.3T^p]2)+0.2(((S^1)065100)2+((S^2)015100)2+(T^035100)2+(I^075100)2+(R^0110)2) (15)

The optimization of the SITR fractal model is achieved with the competency of GA-ASA for 30 runs along with 5 neurons. The MWNN-GA-ASA structure for solving the SITR fractal system is displayed in Fig. 1. The values of the best weight sets are given in Fig. 2. These vectors are accomplished for the proposed outcomes of the nonlinear SITR fractal model. The estimated outcomes for each class of the nonlinear SITR fractal system based on MWNN-GA-ASA are written as:

S^1(Ω)=0.089cos(1.75(0.7998Ω+0.7588))e0.5(0.7998Ω+0.7588)20.1478cos(1.75(0.0508Ω+1.3378))e0.5(0.0508Ω+1.3378)2+0.1373cos(1.75(0.051Ω+0.7000))e0.5(0.051Ω+0.7000)20.7340cos(1.75(0.6862Ω1.9474))e0.5(0.6862Ω1.9474)2+0.4902cos(1.75(0.1306Ω+0.0353))e0.5(0.1306Ω+0.0353)2, (16)

S^2(Ω)=1.0291cos(1.75(1.5158Ω+3.5529))e0.5(1.5158Ω+3.5529)20.7151cos(1.75(1.474Ω3.4331))e0.5(1.474Ω3.4331)2+1.2637cos(1.75(0.163Ω2.0456))e0.5(0.163Ω2.0456)2+0.1519cos(1.75(0.6111Ω+2.3225))e0.5(0.6111Ω+2.3225)21.3470cos(1.75(0.136Ω1.1502))e0.5(0.136Ω1.1502)2, (17)

images

Figure 1: MWNN-GA-ASA structure to solve the SITR fractal system

I^(Ω)=0.8550cos(1.75(0.2532Ω1.0049))e0.5(0.2532Ω1.0049)20.5164cos(1.75(0.123Ω1.4089))e0.5(0.123Ω1.4089)21.2719cos(1.75(0.075Ω1.7133))e0.5(0.075Ω1.7133)20.1673cos(1.75(0.427Ω1.3354))e0.5(0.427Ω1.3354)21.2935cos(1.75(0.0244Ω1.5146))e0.5(0.0244Ω1.5146)2, (18)

T^(Ω)=0.032cos(1.75(0.6127Ω+1.7895))e0.5(0.6127Ω+1.7895)2+0.0462cos(1.75(1.1673Ω+2.7581))e0.5(1.1673Ω+2.7581)20.0709cos(1.75(0.393Ω1.2088))e0.5(0.393Ω1.2088)2+0.3425cos(1.75(0.0104Ω+0.1428))e0.5(0.0104Ω+0.1428)20.1518cos(1.75(0.133Ω+1.7493))e0.5(0.133Ω+1.7493)2, (19)

R^(Ω)=3.0081cos(1.75(0.1771Ω+2.2652))e0.5(0.1771Ω+2.2652)20.0314cos(1.75(0.331Ω0.9404))e0.5(0.331Ω0.9404)2+0.1390cos(1.75(0.125Ω+0.6440))e0.5(0.125Ω+0.6440)2+0.1945cos(1.75(0.1036Ω0.7206))e0.5(0.1036Ω0.7206)2+0.0182cos(1.75(0.430Ω0.7343))e0.5(0.430Ω0.7343)2,. (20)

The systems of Eqs. (16)(20) are provided to evaluate the solutions of the nonlinear SITR fractal model and the outcomes are illustrated in the Figs. 25 using 15 variables or 5 neurons. Fig. 2 shows the trained weights set for the nonlinear coronavirus model. Fig. 3 illustrates the best, mean and proposed results based on the nonlinear SITR fractal model. It is noted that the best, mean and proposed solutions od the model overlapped to each other. Fig. 4 signifies the AE values and it is observed that the performances of the SITR fractal model that lie around 10-04–10-06, 10-03–10-05, 10-04–10-07, 10-05–10-06 and 10-05–10-08. The mean performances of the SITR fractal model are calculated around 10-01–10-02. It is observed on the behalf of the AE that the proposed computational approach is accurate to solve the coronavirus model.

imagesimages

Figure 2: Best weights set for the SITR fractal system (a) Best weights for the class S1 (b) Best weight for the class S2 (c) Best weight for the class I (d) Best weight for the class T (e) Best weight for the class R

imagesimages

Figure 3: Result comparison for the SITR fractal system (a) Result comparison for the class S1 (b) Result comparison for the class S2 (c) Result comparison for the class I (d) Result comparison for the class T (e) Result comparison for the class R

imagesimages

Figure 4: AE for the SITR fractal system (a) Mean and Best AE for class S1 (b) Mean and Best AE for class S2 (c) Mean and Best AE for class I (d) Mean and Best AE for class T (e) Mean and Best AE for class R

images

Figure 5: Performance measures for the SITR fractal system

The performances of the statistical operatives based on TIC, MAD and EVAF is illustrated in Figs. 68. It is observed that the TIC performance for the corresponding categories of the coronavirus model found around 10-07–10-08, 10-05–10-06, 10-06–10-08, 10-07–10-08 and 10-07–10-09. The MAD performance for the corresponding categories of the coronavirus model found around 10-03–10-04, 10-02–10-03, 10-02–10-04, 10-04–10-05 and 10-03–10-06. The TIC performance for the corresponding categories of the coronavirus model is calculated as 10-04–10-06, 10-06–10-07, 10-04–10-05, 10-06–10-08 and 10-06–10-09. These optimal small performances enhance the precision and worth of the method.

images

Figure 6: Convergence performance through TIC for the SITR fractal system along with histograms. (a) Hist for class S1 (b) Hist for class S2 (c) Hist for class I (d) Hist for class T (e) Hist for class R

images

Figure 7: Convergence performance through MAD for the SITR fractal system along with histograms. (a) Hist for class S1 (b) Hist for class S2 (c) Hist for class I (d) Hist for class T (e) Hist for class R

images

Figure 8: Convergence performance through EVAF for the SITR fractal system along with histograms. (a) Hist for class S1 (b) Hist for class S2 (c) Hist for class I (d) Hist for class T (e) Hist for class R

The performance measures for the SITR fractal system are plotted in Fig. 5. It can be observed that the EVAF performances for the corresponding classes of the model are calculated around 10-06–10-07, 10-02–10-03, 10-03–10-04, 10-07–10-08 and 10-08–10-09. The MAD performances for the corresponding classes of the model are calculated around 10-01–10-02, 10-02–10-04, 10-03–10-04, 10-05–10-06 and 10-06–10-07. Moreover, the TIC performances for the corresponding classes of the model are calculated around 10-08–10-09, 10-06–10-07, 10-07–10-08, 10-09–10-10 and 10-09–10-10, respectively. It is concluded that the performance of these operators for solving the coronavirus model is accurate and stable.

For more precision and accuracy measures, the statistical representations of the SITR fractal system are provided for the corresponding classes lie around 10-06–10-07, 10-02–10-03, 10-03–10-04, 10-07–10-08 and 10-08–10-09. The statistical results for the Minimum (Min), Mean, Maximum (Max), Median, standard deviation (STD) and semi-interquartile range (SIR) have been executed. The error analysis of the Min and Max values shows the best and worst runs, respectively. The S.I.R is half of the 3rd and 1st quartile. It is seen that the Min values for S1(Ω), S2(Ω), I(Ω), T(Ω) and R(Ω) lie around 10-05–10-08. The Max values are even worst runs lie around 10-01–10-02 for each group of the SITR model. The Max values are even for worst runs lie around 10-01–10-02 for each group of the SITR model. The Mean, S.I.R and STD for the SITR fractal system found around 10-01–10-03. However, the Median values for the r SITR fractal system found around 10-04–10-05. These consistent values authenticate the accuracy and stability of the designed method for the SITR fractal system.

5  Conclusions

This study aimsto exploit the Morlet wavelet neural networks using the numerical performances of the SITR fractal system-based coronavirus. An objective function using the differential system and initial conditions is formulated using the optimization computing strength of global and local search schemes of GA-ASA. The validation of the designed method is experiential through the comparison of the results. The absolute error values are also performed in good measures based on the nonlinear SITR fractal system. The performances of EVAF, MAD and TIC operators have been investigated in good measures for 15 variables to solve the SITR fractal system. The convergence performance through TIC, MAD and EVAF operators using MWNN-GA-ASA for 30 independent executions is also performed. One can prove that these measures prove good performances to solve the nonlinear SITR fractal system. The statistically based gages Min, Mean, Max, Median, STD and S.I.R are also performed in good ranges to solve each class of the SITR fractal model. On the behalf of these assessments, one can authenticate that the designed method is stable, precise and robust to solve the SITR fractal system.

This paper can be regarded as the continuation of the work of the authors contained in papers [5153]. In the future, the proposed computational approach can be implemented to solve the nonlinear models of a higher order [5456], software-defined networks (SDN) models [5764], and nonlinear fluids models [6569].

Funding Statement: The authors extend their appreciation to the Deanship of Scientific Research at Imam Mohammad Ibn Saud Islamic University for funding this work through Research Group No. RG-21-09-12.

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
