A Step-Based Deep Learning Approach for Network Intrusion Detection

Zhang, Yanyan; Ran, Xiangjin

doi:10.32604/cmes.2021.016866

1Jilin Business and Technology College, Changchun, 130507, China
2College of Earth Sciences, Jilin University, Changchun, 130061, China
*Corresponding Author: Xiangjin Ran. Email: ranxiangjin@jlu.edu.cn
Received: 4 April 2021; Accepted: 27 May 2021

Abstract: In the network security field, the network intrusion detection system (NIDS) is considered one of the critical issues in the detection accuracy and missed detection rate. In this paper, a method of two-step network intrusion detection on the basis of GoogLeNet Inception and deep convolutional neural networks (CNNs) models is proposed. The proposed method used the GoogLeNet Inception model to identify the network packets’ binary problem. Subsequently, the characteristics of the packets’ raw data and the traffic features are extracted. The CNNs model is also used to identify the multiclass intrusions by the network packets’ features. In the experimental results, the proposed method shows an improvement in the identification accuracy, where it achieves up to 99.63%. In addition, the missed detection rate is reduced to be 0.1%. The results prove the high performance of the proposed method in enhancing the NIDS’s reliability.

Keywords: Network intrusion detection system; deep convolutional neural networks; GoogLeNet Inception model; step-based intrusion detection

With the emergence of developing computer technology, networks’ users and interconnected devices and data connected to the Internet are rapidly increased [1]. Therefore, the opportunity to affect these users, devices, and data by hackers and illegal networks is also increased [2]. Hackers are usually hiding behind the big data traffic, and intrude the key infrastructure of critical systems, such as banks, power systems, online shopping malls, and government agencies, to perform illegal activities [3,4]. Accordingly, the intrusion detection system (IDS) is proposed as an active defense technology to quickly and accurately detect unauthorized connections [4–6].

Recently, several rules were used by IDSs to detect the targeted networks’ intrusion, which proved its efficiency [7]. In contrast, these systems have some problems, such as detecting new intrusions, relying heavily on engineers’ skill, low accuracy of intrusion detection, and high false-positive and false-negative rate. In addition, in the case of big data, the IDSs cannot meet the needs of fast, stable and efficient detection of intrusion data from massive network connections [8]. With the emergence of machine learning, the IDSs are significantly improved by enhancing the detection accuracy and efficiency [9–11]. However, traditional machine learning methods are still ineffective to meet massive data and high computation needs.

In 2006, deep learning technologies [12] were proposed and successfully applied in many fields, particularly, recognition and detection algorithms. Deep learning uses convolution, pooling and other neural network layers to build different models. Deep learning can iteratively train data to extract its characteristics to avoid human intervention. Recently, lots of deep learning models are successfully applied for image classification [13], speech recognition [14,15], medical diagnosis [16], rock recognition [17], intelligent transportation [18] and other fields [4,19].

In intrusion detection research, various intrusion detection models have been proposed on the basis of deep learning technologies [1,12,20,21]. As unsupervised deep learning model, deep encoder (DE) [22–24], support vector machine (SVM) [4], recurrent neural network (RNN) [20,25], transfer learning [26], and reinforcement learning [27] have been used in the detection of network intrusions. Most of these models can detect new types of attacks, significantly improve intrusion detection accuracy, and reduce the rate of false-negative and false-positives. Therefore, the IDSs on the basis of deep learning receive extensive research and attention [28–30].

Deep learning models provide several advantages to solve different problems optimally [31–36]. For instance, the RNN model can memorize and identify the previous features [20], and the Auto Encoder network can automatically learn the sample features [12]. In addition, several studies have proposed deep learning hybrid models intrusion detection to maximize the advantages of the used models [10]. For instance, Zhang et al. [37] proposed a hybrid intrusion detection model on the basis of Deep Belief Network (DBN) and Twin Support Vector Machine (TSVM), and Wang et al. [38] proposed an intrusion detection model on the basis of Convolutional Neural Network-Support Vector Machine (CNN-NSVM). Aljawarneh et al. [10] proposed a new hybrid model that combined some classifiers to classify the binary and multiclass by selecting the most critical features. The results shown by the hybrid model proved its significant training time reduction and accuracy of detection improvement.

NSL-KDD [39] dataset (i.e., the upgrade version of KDD99 [40] dataset) is often used as a benchmark to evaluate IDS. Most of the current research used NSL-KDD dataset in the evaluation processes. However, even network environments are rapid growth, the datasets are still old, and the network intrusion behavior is often hidden in the network huge data flow. The network traffic characteristics consider only one-sided for intrusion detection, which makes it ineffective for detection. In order to address such issue, Liang et al. [41] used a one-hot encoding method to encode the original network packets using the UNSW-NB15 [42] dataset. In addition, the proposed method discarded the empty packets containing the data header without actual packet content, and formed two-dimensional data. Subsequently, the authors used the GoogLeNet concept model for training, avoiding the shortcomings of using public datasets, and achieving better detection results. However, some attacks, such as Synchronize Sequence Numbers (SYN) Flood, may escape IDS using such methods because these attack packets often do not carry application-layer data.

In this paper, a step-based deep learning intrusion detection method is proposed to improve the accuracy of intrusion detection and reduce the rate of the missing report. In terms of the network data flow, the method first judges whether the data packet contains application-layer data. In terms of the packet containing application-layer data, the original data packet is detected using the GoogLeNet Inception intrusion model on the basis of the original traffic to achieve the purpose of rapid detection. In addition, the feature-based CNNs model is used to identify the type of packets without application-layer data to avoid missing intrusion connection and improve the accuracy of intrusion detection. Subsequently, the proposed method is implemented on the basis of TensorFlow-GPU framework. Finally, the model is applied in a laboratory environment.

The remainder of this paper is organized as follows. Section 2 presents the related works, particularly the deep learning approaches. Section 3 describes the benchmark datasets and step-based deep learning approach for intrusion detection. Factor analysis that affects the identification accuracy, such as the type of model, sample size, and model level is presented in Section 4. In addition, the evaluation results are presented in this section. Section 5 provides the conclusion of this research.

NIDS is playing an essential role in the network security field. According to the NIDS’s position in the network, the efficient IDS must contain a series of indicators, such as high accuracy, low false detection rate, low miss detection rate, and low delay. With the development of artificial intelligence technology, many deep learning models [8,13,21–23,25] and optimization algorithms [43–50] have been proposed. The accuracy of classification and object detection using computers is getting higher and higher. A massive number of studies have been proposed starting from the old methods using rule-based [7] and feature-based [10,19,42,51,52] intrusion detection to the modern deep learning methods [1–5,21,23–25].

The intrusion detection methods that used machine learning models, such as random forest (RF), SVM [19] and decision tree [11], attracted the researchers’ attention, where these methods superior intrusion detection technology on the basis of rule base [7]. A large number of anomaly classification algorithms have been proposed. Assiri [9] proposed a method for anomaly classification of network attack detection using genetic algorithm-based RF. Aljawarneh et al. [10] used feature selection analysis to build a hybrid efficient model for anomaly-based intrusion detection. Sivatha et al. [11] construct a light weight IDS based on decision tree to detect anomalies in networks. Ambusaidi et al built an IDS using a feature selection algorithm based on filter [42]. These methods could identify the anomaly intrusion, but were difficult in feature selection.

Recently, the researchers’ attention became more interested in using deep learning methods instead of the early rule-based and machine learning methods, particularly in IDS. Deep learning methods can be easily applied to IDS to automatically learn the characteristics of the existing data through training and obtain the parameters to identify the unknown data. Several intrusion detection (anomaly detection) methods using deep learning methods, such as deep convolutional neural networks (DCNNs), GoogLeNet, RNN [25], long short-term memory (LSTM) [36] and DBN, are proposed and applied for IDS using different scenarios. In the evaluation results, the proposed methods proved their robust performance in the detection. In addition, some hybrid intrusion detection models have also been proposed. Zhang et al. [37] proposed a hybrid intrusion detection model based on DBN and TSVM. Wang et al. implemented an intrusion detection model based on CNN and NSVM [38].

In this section, the datasets used for training, testing, and evaluating are introduced. Also, the methodology of the step-based deep learning for network intrusion detection is illustrated.

Several intrusion detection methods used KDD99 and NSL-KDD datasets for training and evaluating the methods. NSL-KDD is created using KDD99 dataset by integrating many network data traffic characteristics, including normal connection and four types of attack connection, as shown in Tab. 1. It is more suitable for training the classification of normal data and attack data without application layer data.

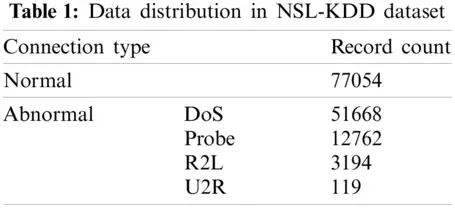

Accordingly, NSL-KDD dataset is used in the evaluation processes of this research. Each record in the dataset refers to a network connection which contains 41 features. Given that the primary objective of this study is related to the network intrusion, the features related to hosting intrusion are not considered. These features are removed and ignored; therefore, only 28 features are used, including three features are characters, which are protocol, service and flag. During training process, these three characters’ features can’t be used for numerical calculation, so they are coded by the one-hot encoding [39]. There are 3 protocol types in the protocol feature, while 70 service types and 11 network connection states. After one-hot encoding, each sample creates 109 items and fills 12 zero values to create a two-dimensional matrix with a size of 11 × 11.

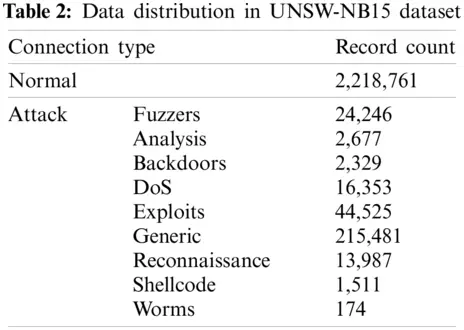

Australian Centre Cyber Security created UNSW-NB15 dataset on the basis of the IXIA Perfect Storm tool [53,54]. This dataset provides up to 100 GB of raw data traffic, including nine types of attacks: Fuzzers, Analysis, Backdoors, DoS, Exploits, Generic, Reconnaissance, Shellcode, and Worms (Tab. 2). UNSW-NB15 dataset is used on the basis of a large number of original data samples to train the classification of network data packets that contain application-layer data.

UNSW-NB15 dataset contains a massive amount of data with the same MAC address and IP address that may affect the accuracy of detection. Therefore, the Ethernet header and IP header in the packet should be removed to eliminate the influence of fixed MAC address and IP address on the model’s accuracy and get the simplified packet (Reduced-Data) [39]. When finished reducing, the rest data contains 1460 bytes content maximum, forms a two-dimensional matrix with a size of 38 × 38 by removing the last bytes if more than 1444 bytes or padding zeros to 1444 bytes if less than 1444 bytes. Subsequently, the Reduced-Data is standardized and normalized, and then send to the deep learning model as input data for training or inference.

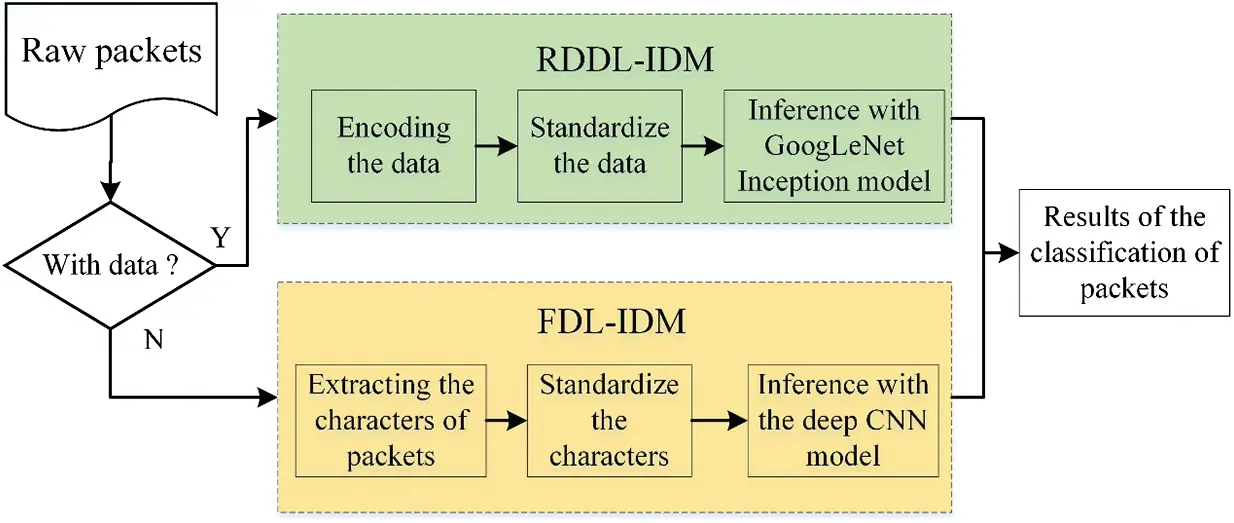

The general architecture of the step-based deep learning intrusion detection system (SDL-IDS) can be shown in Fig. 1. The SDL-IDS contains two modules, including the Raw-Data-based deep learning intrusion detection module (RDDL-IDM) and the Feature-based deep learning intrusion detection module (FDL-IDM).

RDDL-IDM detects network attacks on the original network packets with application-layer data to avoid the tedious steps of feature extraction and improves the detection efficiency. Subsequently, it is classified by GoogLeNet model to obtain the detection results.

GoogLeNet model outperformed all compared models in the ILSVRC competition in 2014 [55]. GoogLeNet model contains 22 layers. Its most prominent feature is that the final fully connected layer is replaced by the global average pooling layer, making the model training faster and reducing over-fitting. The concept module is considered the most significant module of GoogLeNet model, where it solves the problems of over-fitting and gradient dispersion by increasing the depth and width of the network and reducing the parameters at the same time.

The concept V1 model contains four classes, as shown in Fig. 2b. The first class convolutes the input by 1 × 1, which is an important structure proposed in Network. 1 × 1 convolution filter can organize information across channels and improve the network’s expression ability. At the same time, the dimension of the output channel can be increased or decreased. 1 × 1 convolution filter is also used in the second class, and 3 × 3 convolution operation equivalent to two feature transformations is connected. The third class is similar to the second class, which use 1 × 1 and 5 × 5 convolution operations. In the fourth class, 1 × 1 convolution operation is used after applying a max-pooling function with 3 × 3. These four classes are aggregated using the concatenate function.

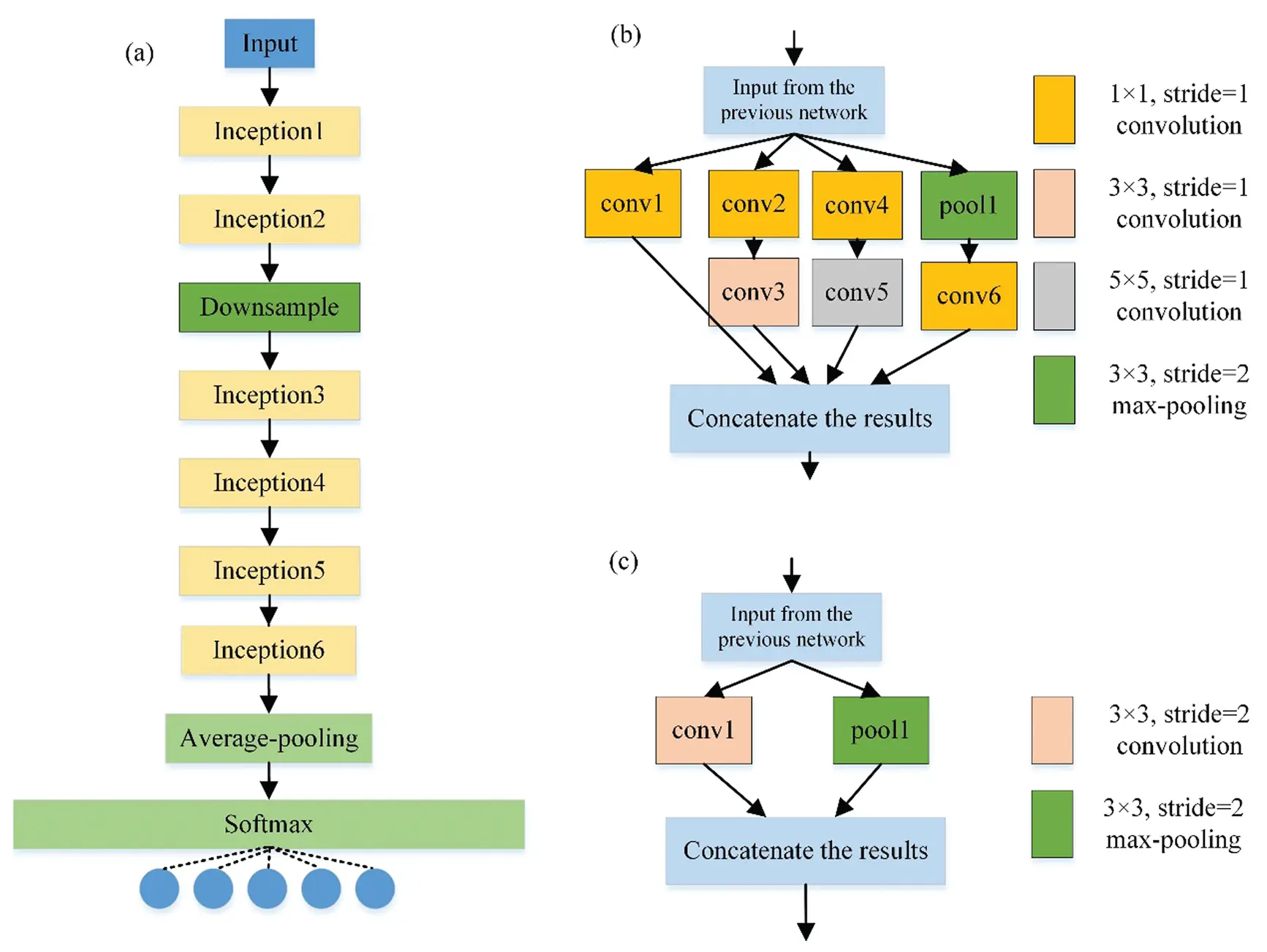

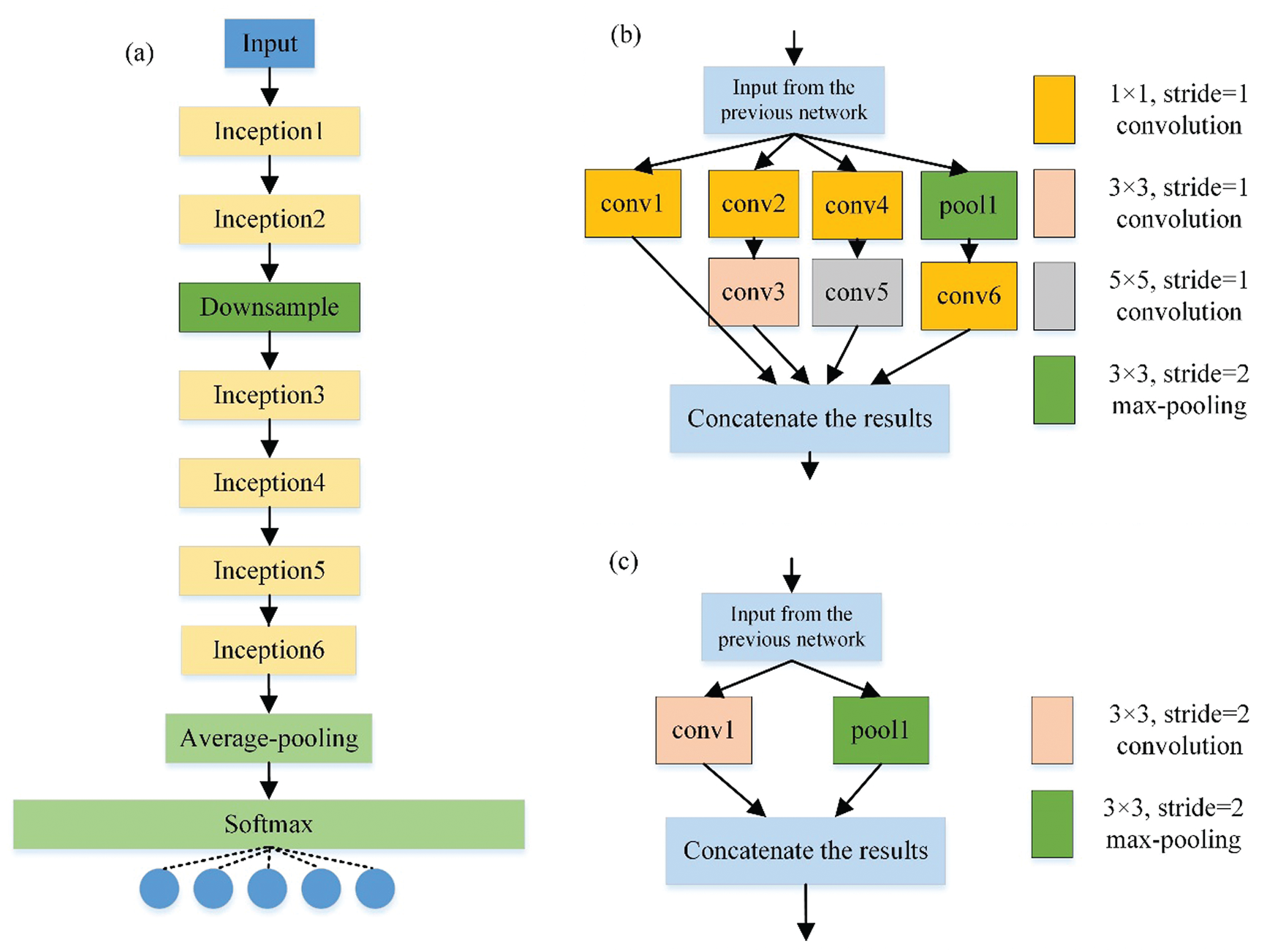

Figure 2: The general architecture of improved GoogLeNet model. (a) The architecture. (b) The inception module. (c) The downsample module

FDL-IDM detects network attacks on empty packets without application-layer data. Among the common types of network attacks, SYN Flood and other unauthorized connections attack the transport-layer protocols. The data packets transmitted by these connections usually appear in the form of empty packets without application-layer data. The RDDL-IDM will remove empty packets when handling the packets. Therefore, the RDDL-IDM will not detect the attacks correctly, which can be addressed using the FDL-IDM.

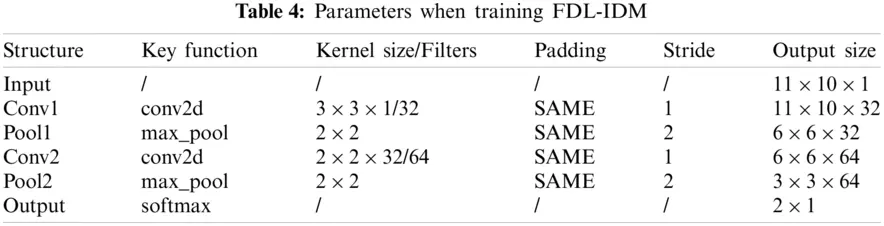

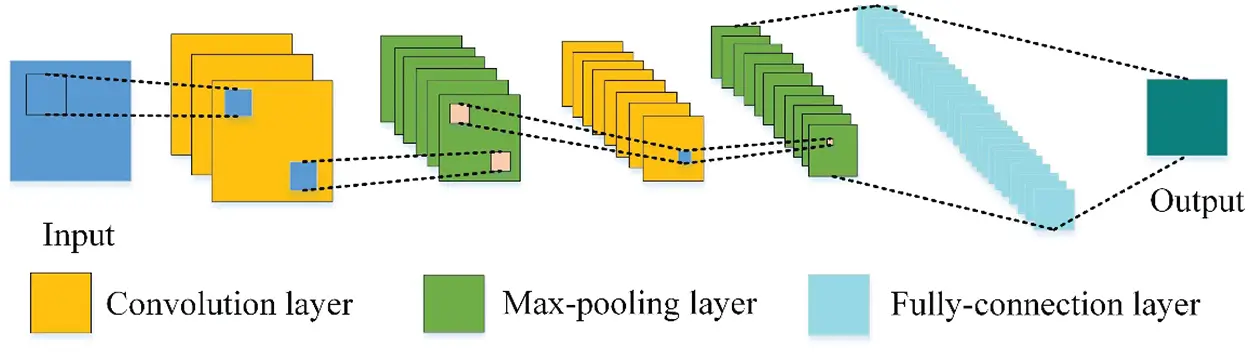

FDL-IDM use CNN to address the detection problem perfectly. CNN is one of the most classical models in deep learning, where it is used to solve the problem of parameter explosion of high-dimensional data and improve the accuracy of classification. CNN network structure contains convolution-layer, pooling-layer and full connection-layer, as shown in Fig. 3.

Generally, the convolution layer is used for feature extraction. The convolution method is used to extract features, where each neuron is only connected with a few other neurons in the upper layer; thus, the number of parameters must be reduced. In CNNs, the same set of connections share the same weight, which can effectively extract image features and reduce the amount of calculation resulted from the different weights.

where s denotes the output data, known as feature mapping, x is the input sample data, w is the weight value of the kernel function, b is the bias value, and f is the activation function.

The convolution operation can efficiently extract the target image’s features, but some redundant information will be in the generated feature map. The pooling-layer can remove the unobvious data in the features, enhance the density of effective data, reduce the number of parameters, and improve the model’s robustness.

Using multiple convolution-layers and pooling-layers, the CNN model should use the fully connected layer to correlate the extracted features to be in a one-dimensional vector form. The vector is fed into a function named Softmax, which provided by the TensorFlow framework, to calculate the cross entropy for the final classification.

According to the datasets and methodology proposed, experiments are implemented, and then the results are analyzed.

The software and hardware configurations of the experiments for the proposed method are given firstly, and then the evaluation system is explained.

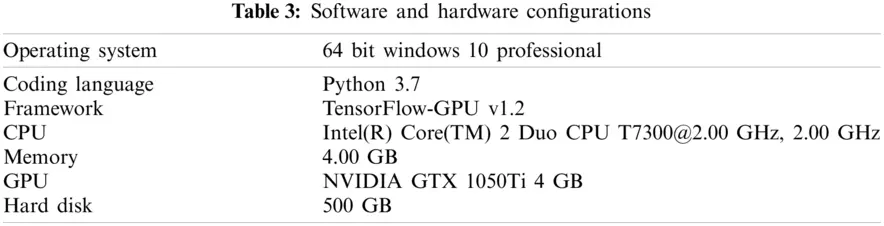

The proposed method is executed using software and hardware, as described in Tab. 3.

In this experiment, accuracy (AC), false alarm (FA), and missing rate (MR) are used to evaluate the obtained results. These parameters are formulated as follows:

where TN denotes the number of normal samples correctly classified, TP is the number of attack samples correctly classified, FN is the number of attack samples that are wrongly reported as normal, and FP is the number of normal samples that are wrongly reported as attacks.

A series of experiments are carried out in accordance with the experimental environment and evaluation parameters described in Section 4.1. The NSL-KDD dataset is used to train FDL-IDM, and the UNSW-NB15 dataset is used to train RDDL-IDM.

The one-hot encoded NSL-KDD dataset on the basis of TensorFlow-GPU deep learning framework is used and trained using the CNNs structure, as shown in Fig. 3. The corresponding parameters are shown in Tab. 4. Tab. 5 shows the hyper parameters of FDL-IDM, such as the batch size, epochs, initial learning rate (ILR) and so on. The Adam optimizer was used in FDL-IDM. Subsequently, the parameters are saved in the corresponding network model file, named FDL-IDM.pb.

In this step, the UNSW-NB15 dataset is divided into training, validating, and testing datasets, within 8:1:1 proportion. The training and validating datasets are sent as input to the RDDL-IDM model. The hyper parameters of RDDL-IDM are shown in Tab. 4. Different with FDL-IDM, the batch size is set to 32, ILR is set to 1e − 4, and the value of decay is set to 1e − 8. Subsequently, the training parameters are saved in a file named RDDL-IDM.pb.

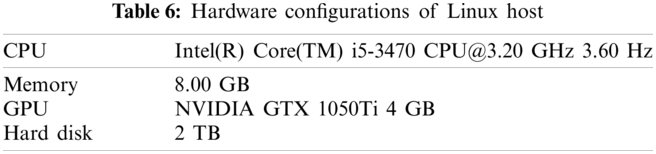

After trained the two models, the SDL-IDS is deployed on a Linux host, with the hardware parameters shown in Tab. 6, which is configured to enable the routing and forwarding functions. In addition, a virtual network experimental environment is created in the laboratory environment. The specific network topology is shown in Fig. 4.

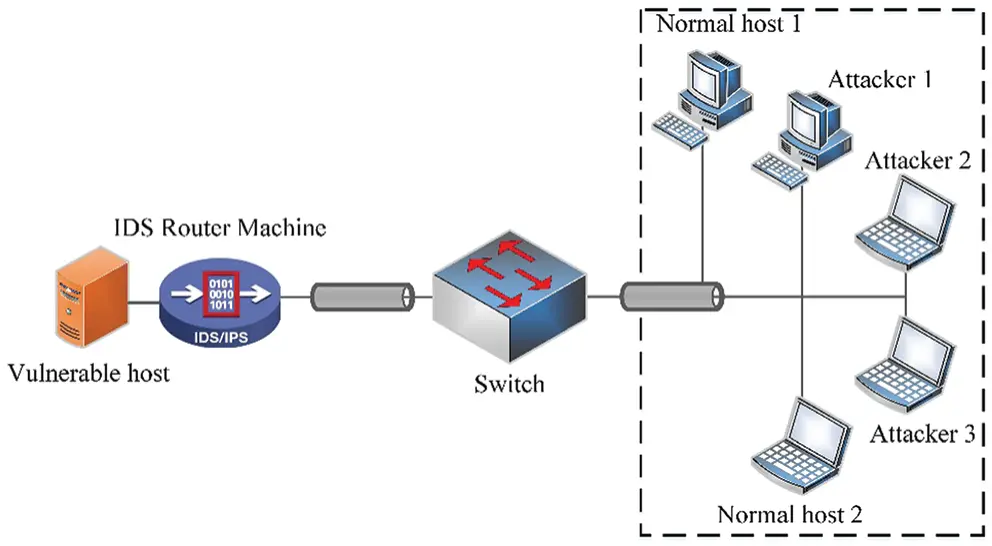

In Fig. 4, the SDL-IDS installs a sniffer to monitor the network and selects different intrusion detection modules by detecting whether the monitored network packets contain application-layer data. If packets contain application-layer data, the data will be reduced and send to the RDDL-IDM for detection. In addition, the corresponding classification results will be obtained. Otherwise, the feature extraction operation is performed with the utility named “kdd99_feature_extractor” [57] according to the IP and Port information in the data packet. This utility can extract majority KDD’99 features from real-time traffic or .pcap file [57]. Subsequently, the current record is sent to the FDL-IDM for detection and obtain the corresponding classification results.

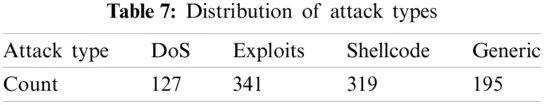

In the virtual network attack environment, 982 attacks and 1502 normal visits are generated. The attack types are DoS, Exploits, Shellcode, and Generic. Tab. 7 shows the distribution of the attack types.

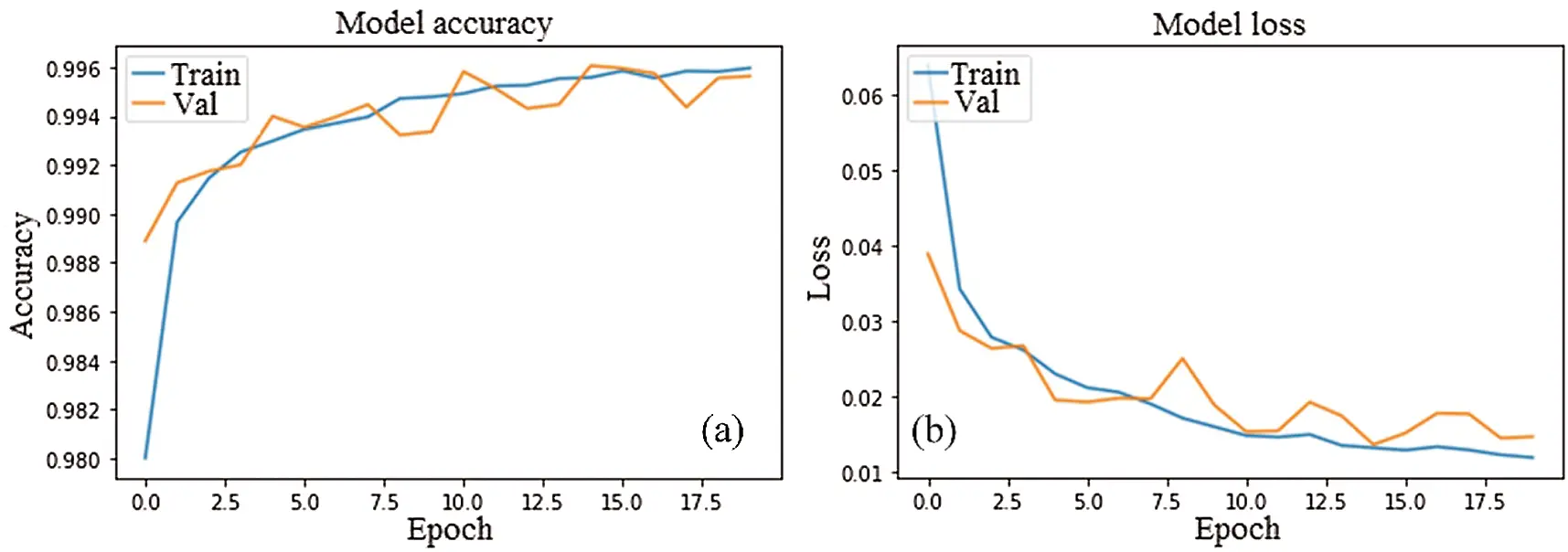

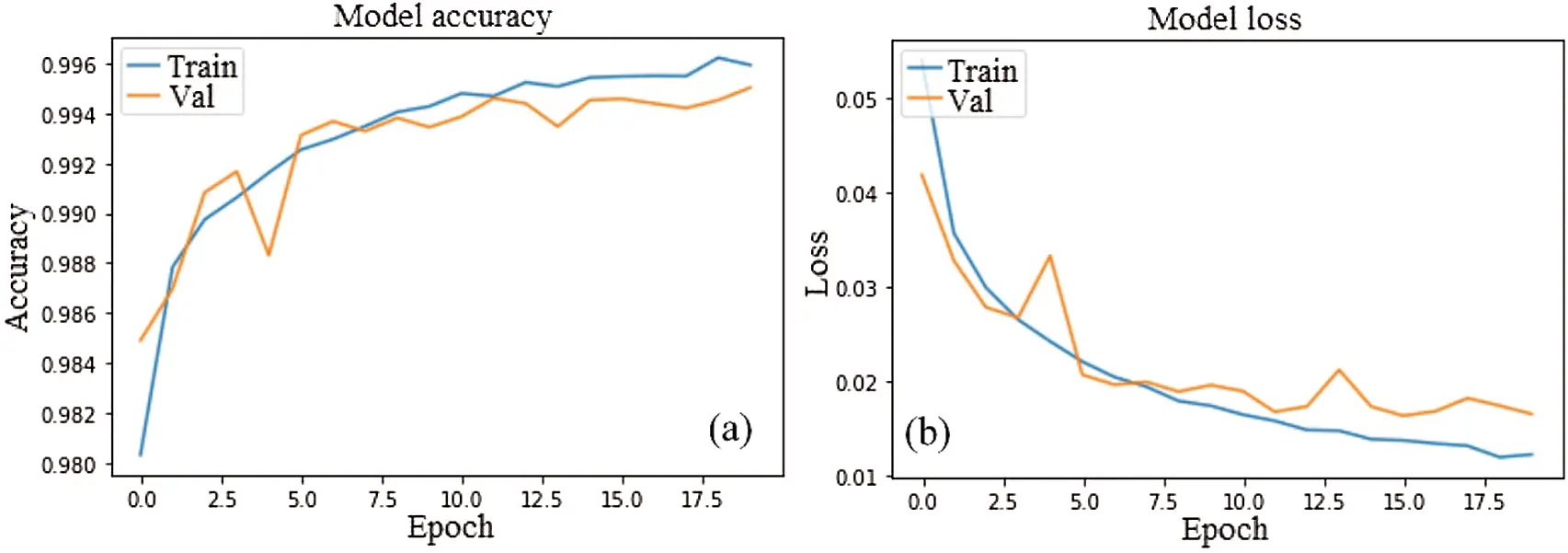

After 20 epochs, the accuracy and loss curves of train and validation are show in Fig. 5, respectively. Same with FDL-IDM, the accuracy and loss of train and validation of RDDL-IDM are shown in Fig. 6.

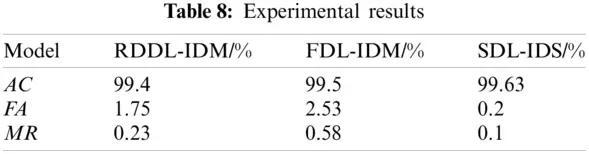

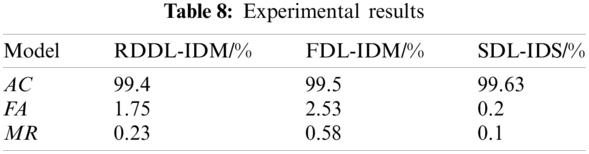

Tab. 8 shows the obtained results by the SDL-IDS. The results prove the robust performance of the SDL-IDS, where it improves the overall accuracy of intrusion detection to be 99.63%. The MR is reduced by up to 0.1% compared with RDDL-IDM and FDL-IDM. In addition, the SDL-IDS’s FA is reduced by up to 0.2% compared with the single model.

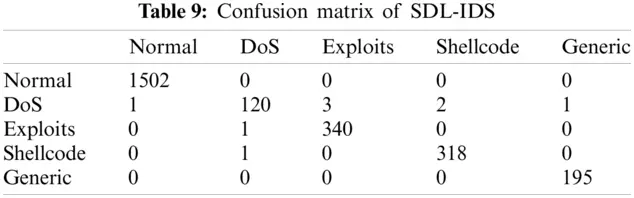

Tab. 9 shows the corresponding confusion matrix. In the binary classification problem, the SDL-IDS improves the accuracy in detecting the unauthorized connections. In addition, the classification accuracy of the four types of attacks (i.e., DoS, Exploits, Shellcode, and Generic) is enhanced compared with the single model. The obtained overall classification accuracy of the four attack types reached up to 99.63%. However, some classifications are still missed, such as DoS.

A step-based deep learning method for network intrusion detection is proposed. The proposed method combined the packets’ raw data, used in RDDL-IDM, and the connections feature, used in FDL-IDM to achieve best overall five-class identification accuracy. The RDDL-IDM class can identify the packets with application-layer data, while the FDL-IDM class can identify the packets without application-layer data.

The proposed SDL-IDS is executed using an experimental environment. The proposed SDL-IDS enhanced the normal and unauthorized connections classification. In addition, the classification of unauthorized connections using the four attack types is improved and achieved results better than that of the single model. Generally, the proposed step-based deep learning intrusion detection system obtained the best results compared with the single model.

Possible future directions can be considered to enhance the proposed SDL-IDS by increasing the sample count and optimizing the super parameters. In addition, collect more DoS attack samples to improve the results.

Acknowledgement: The authors would like to express their gratitude to EditSprings (https://www.editsprings.com/) for the expert linguistic services provided.

Funding Statement: This work was supported by the Education Department of Jilin Province (No. JJKH20180518KJ), and Science and Technology Research Project of Jilin Business and Technology College (No. kz2018002).

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
